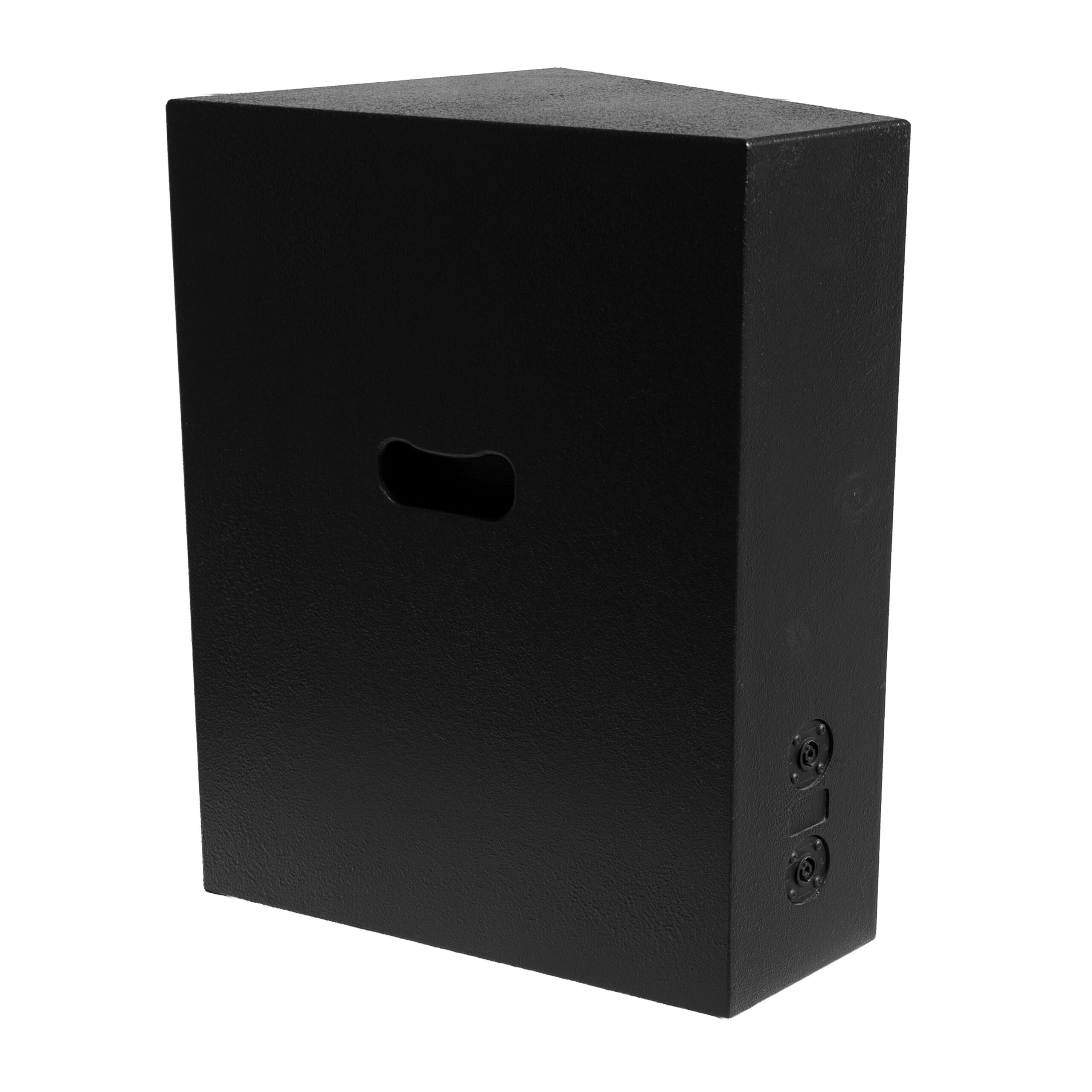

WB1200 - 12" Coaxial Speaker Bi-Amped
A do-it-all 12″ point-source speaker designed to provide class-leading clarity and imaging.
Price range: $1,280.00 through $1,425.00
Tired of underperforming big-brand powered PA speakers? The WAAT WB1200 may just be the right choice for you!
The 12" coaxial driver used in the WB1200 allows it to stand out from its competitors by providing a true point-source sound. Because the compression driver is mounted directly in the center of the low-mid driver, the acoustical output of both drivers emanates from the same point in space. This allows for a substantial improvement in phase coherency, directivity, imaging, and overall fidelity, when compared to most traditional two-way loudspeakers.
The WB1200 is available as either a bi-amplified or full-range loudspeaker using a custom, in-house-designed passive crossover network. The WB1200 is also available in either 80 degree conical or 60x40 degree coverage patterns.
Design Specs
- Dimensions: 625mm tall x (418mm (front) 177mm (rear)) x 450mm deep
- Shape: Trapezoid
- Weight: 48 lbs
- Driver Count: 1
- Total Design Impedance: LF 8 Ohm, HF 8 Ohm
Operating Specs
Recommended Crossover Settings:
- High Pass (HPF): 80Hz
- Crossover between drivers: 1.2kHz
| Tags | |
|---|---|
| Tags | 2-WayCoaxial |
| Attributes | |
| Driver | B&C 12" Coax FerriteB&C 12" Coax Ferrite W HornB&C 12" Coax NeoB&C 12" Coax Neo W Horn |
