Paraflex Type C 1x21" V2 Subwoofer Speaker Kit
Flat pack speaker kit for a compact subwoofer enclosure designed to support multiple drivers and still provide incredible performance.
Price range: $775.00 through $1,461.00

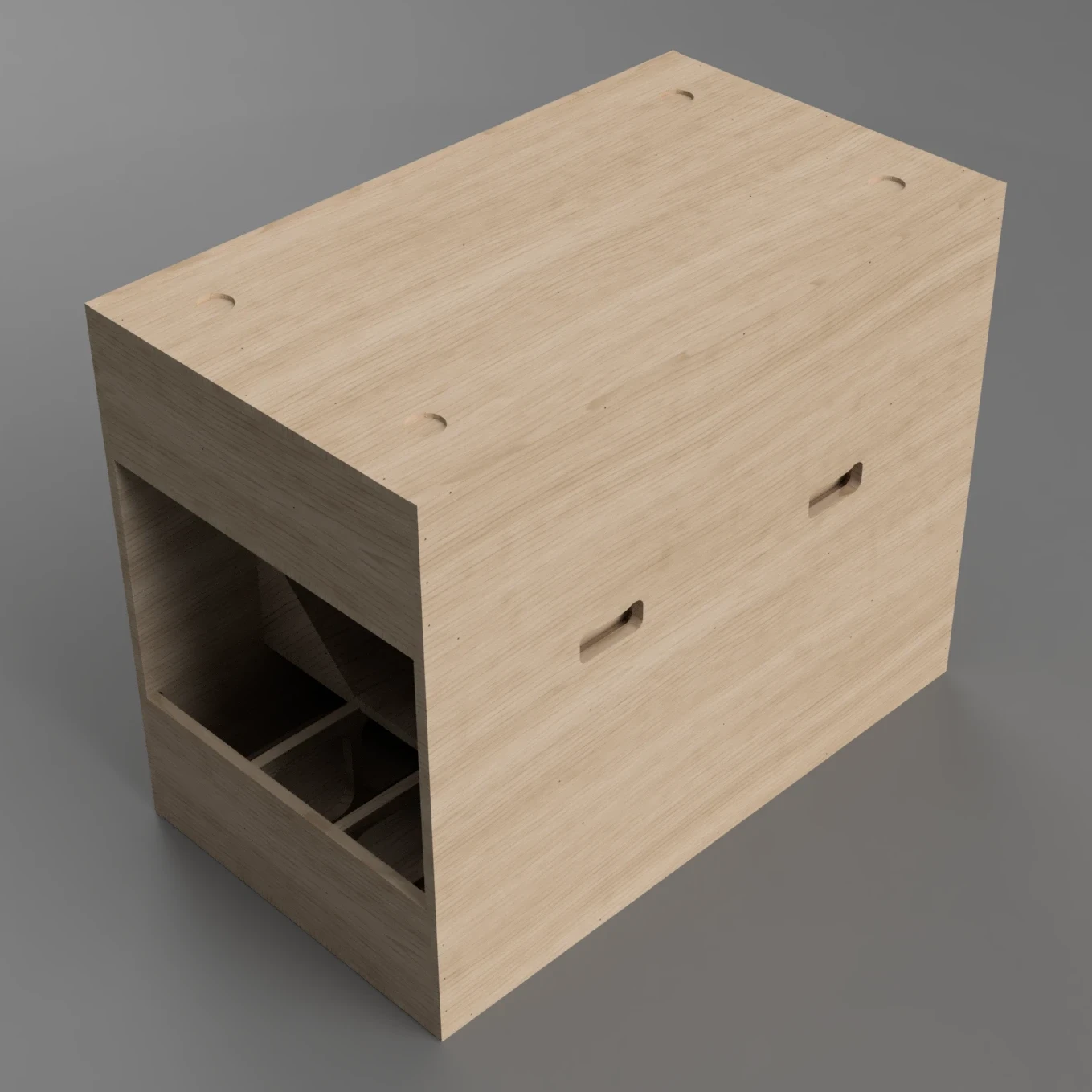

If you are looking to build the most compact single 21" Paraflex subwoofer enclosure, then this kit is for you! Included are all panels necessary to assemble your very own Paraflex Type C V2 enclosure. Each panel is CNC-cut from premium 13-layer 18mm Baltic Birch plywood. All panel edges have been pre-sanded to allow for easy assembly.
Detailed Description:
• Paraflex Type C 1×21" Subwoofer tuned to 31Hz - PLEASE NOTE BOX WIDTH HAS BEEN SHRUNK BY 1 INCH FROM HOQS SPECS TO MAKE THIS ENCLOSURE TRUCK PACK FRIENDLY!
• Premium 18mm 13-layer Baltic Birch
• Baffle cut to your choice of driver. (Please note drivers at check out!)
• Integrated wood handles
• Jack plate cut and recessed for Part #262-036 or #262-028
• Feet recesses on bottom and pockets on top
Part: Reliable Hardware Company RH-1606-8-A
• Holes for baffle and access panel drilled for 1/4"-20 T-nuts
Design Specs
- Dimensions: 1016mm x 810mm x 610mm
- Shape: Rectangular
- Internal Volume: 502 Litres
- Weight: 140 lbs
Recommended Drivers
- B&C21SW152-4
- HOQSN216C
- LavoceSAN215.30
Operating Specs
• Fb: 31Hz
• Operating Range: 30Hz-100Hz
• Sensitivity: 30Hz-100Hz: 101.7 dB avg 1w@1m
• Maximum SPL: 134 dB continuous 137 dB Peak
***Using HOQS N216C Driver 1/2 Space @ 1m***
Recommended Crossover Settings
- High Pass (HPF): 30Hz BW24
- Low Pass (LPF): 80-100Hz
| Tags | |
|---|---|
| Tags | Subwoofer |
| Attributes | |
| Assembly | No AssemblyAssembly Included |
| Custom Logo | No LogoCustom Logo |
| Driver Count | 1 Driver |
| Driver Size | 21 Inch |
| Grill | No GrillGrill |
| Hardware Kit | No HardwareHardware Included Large |
| Model Type | Type C |
| Pole Mount | No Pole MountThreaded Pole Mount |
