Paraflex C3D 1×15" Splayable Kick/Mids Tops Speaker Kit
Flat pack speaker kit for a trapezoidal kick/mid enclosure providing unmatched mid-bass punch without compromising midrange performance.
$495.00
Looking to build your next kick/mid section for your sound system? Consider this flat pack speaker kit for the Paraflex C-3D 1x15" KickTop enclosure. Included are all panels necessary for assembly. Each panel is CNC-cut from premium 11-layer 15mm Baltic Birch plywood, and edges have been pre-sanded to allow for easy assembly.
We have integrated feet recesses into the top of the enclosure that accommodate the WB5000 mid/high section we offer.
Detailed Description:
• Paraflex C-3D 1×12" Kick/Mid
• Premium 15mm 11-layer Baltic Birch
• Baffle cut to your choice of driver. (Please note drivers at check out!) - uses M5x10mm threaded inserts. Part: a16103100ux0956

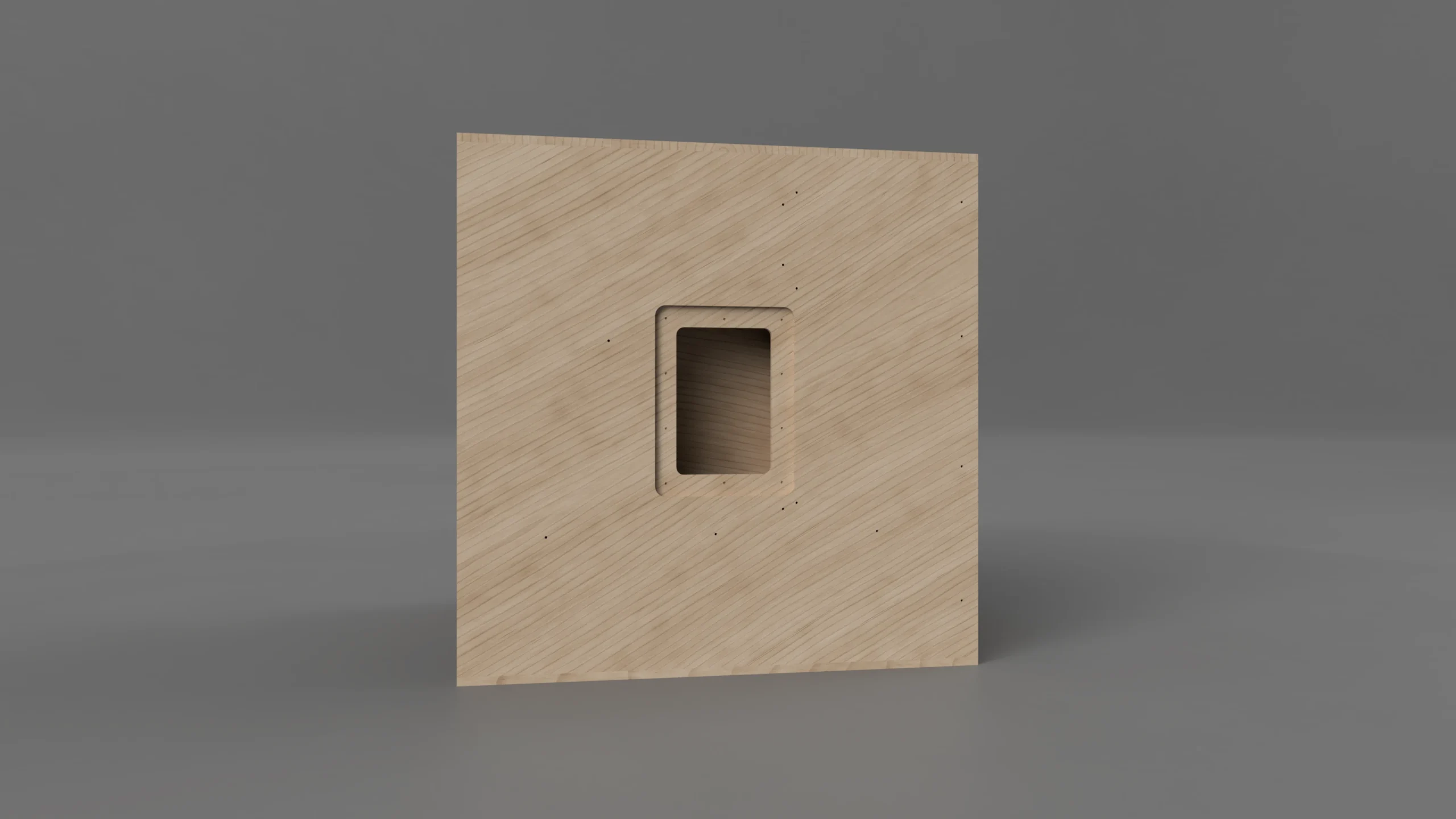

• Recessed handle cutouts. Part #262-821
• Recessed NL4 cutouts. Part # 092-054

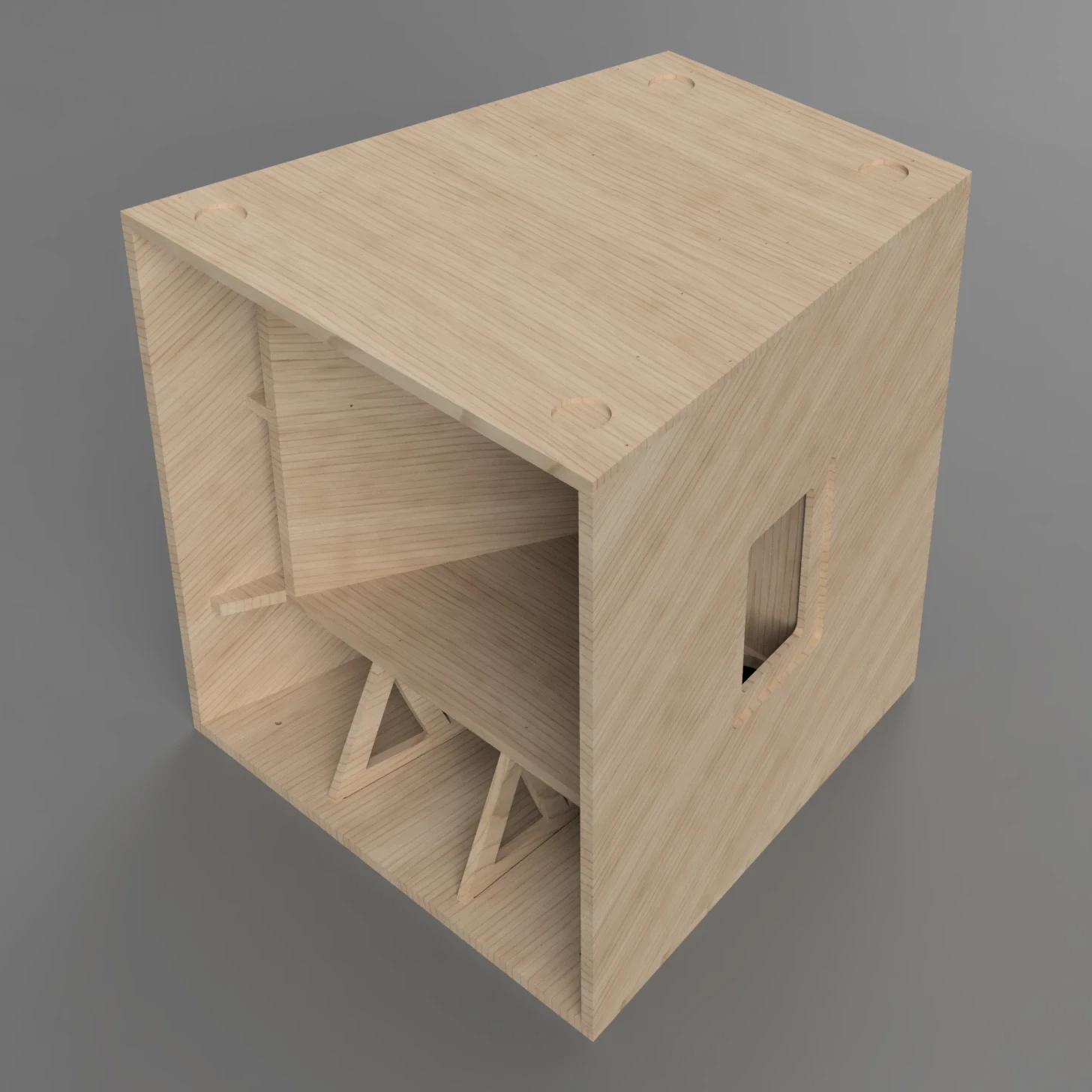

• Feet recesses on bottom and pockets on top
Part: Reliable Hardware Company RH-1606-8-A

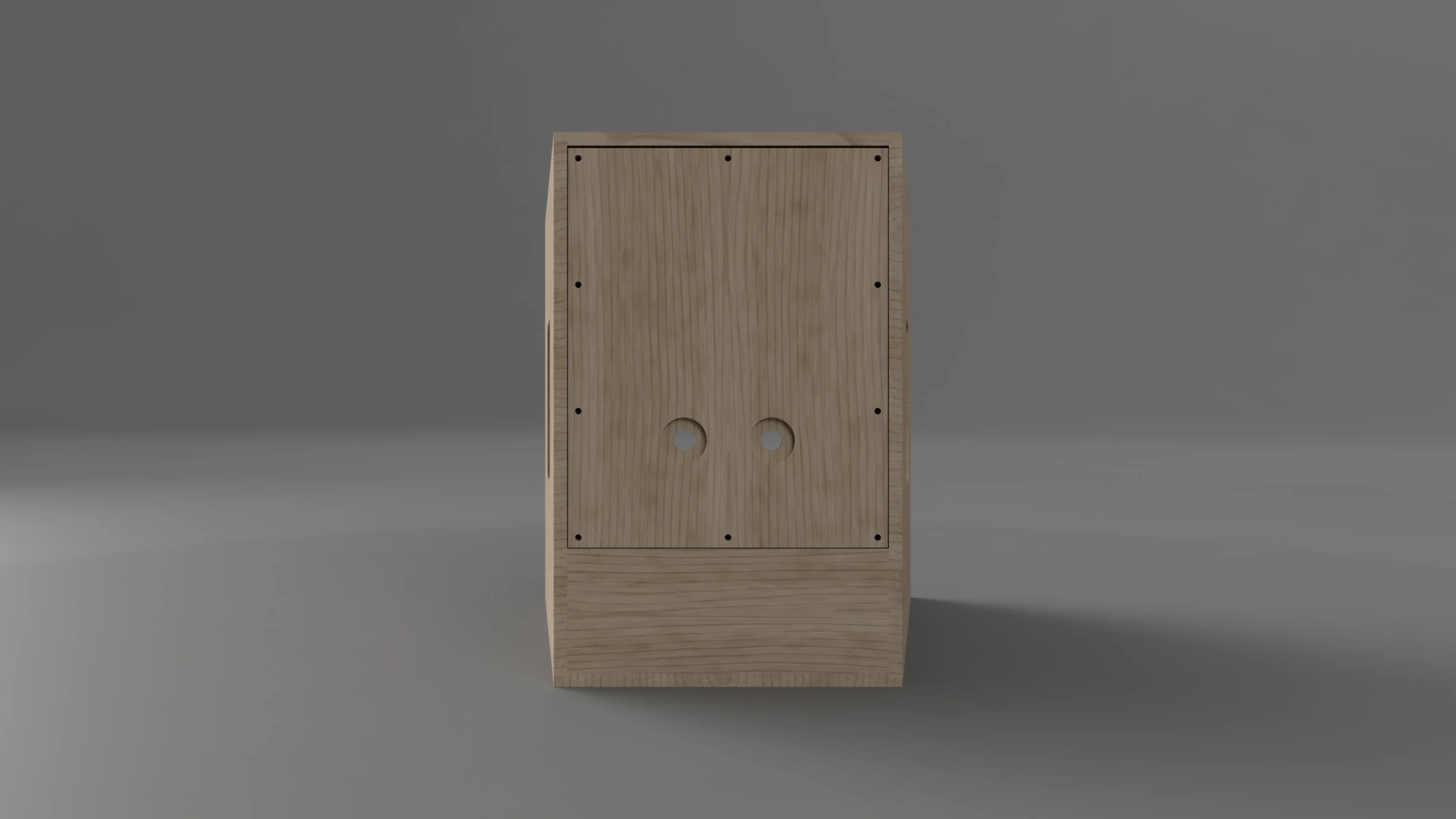

• Access panel holes drilled for 1/4"-20 T-Nuts
Design Specs
- Dimensions: 630mm tall x (620mm front / 405mm rear) x 620mm deep
- Shape: Trapezoid
- Internal Volume: 150 Liters
- Weight: 57 lbs
- Driver Count: 1
Operating Specs
• Fb: 77Hz
• Operating Range: 70Hz-800Hz
• Sensitivity: 70Hz-800Hz: 111dB avg. 1W@1M
• Maximum SPL: 138dB continuous 144dB Peak
***Using Lavoce 15″ Driver 1/2 Space @ 1m***
Recommended Crossover Settings
- High Pass (HPF): 70Hz
- Low Pass (LPF): 800hz
