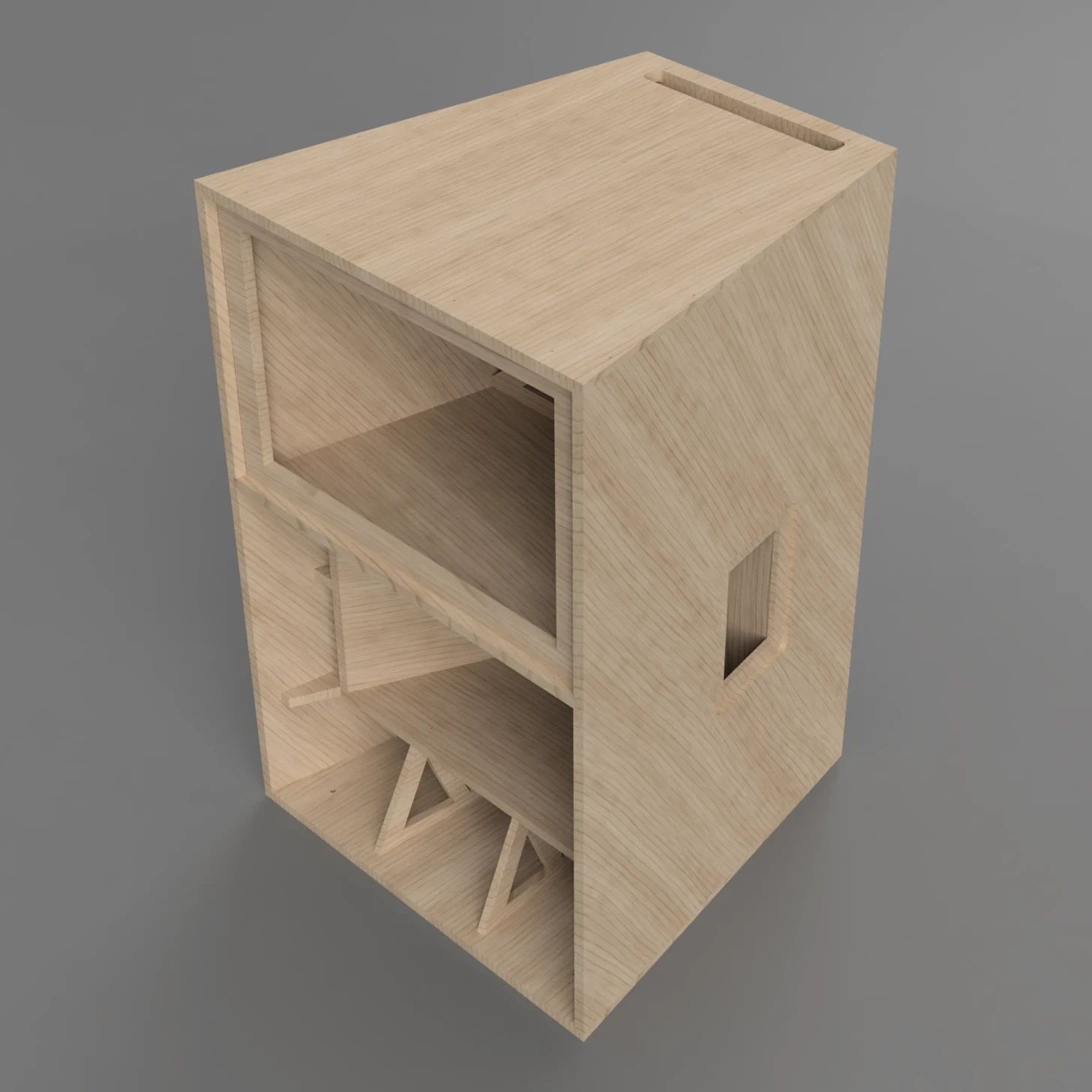

Paraflex C3D 1x12" Splayable Kick/Mid With 60x40 Horn Speaker Kit
Flat pack speaker kit for a trapezoidal kick/mid enclosure providing unmatched mid-bass punch without compromising midrange performance, with integrated 60x40 horn.
Price range: $645.00 through $1,128.00
Want to build a powerful all-in-one kick, mid and high enclosure? Consider this flat pack speaker kit! We have extended the design of the Paraflex C-3D 1x12" Kick/Mid enclosure to accommodate a high-frequency waveguide, avoiding the need for separate enclosures. Included are all panels necessary for assembly. All panels have been CNC-cut from premium 11-layer 15mm Baltic Birch plywood. Additionally, all panel edges have been pre-sanded to allow for ease of assembly.
Detailed Description:

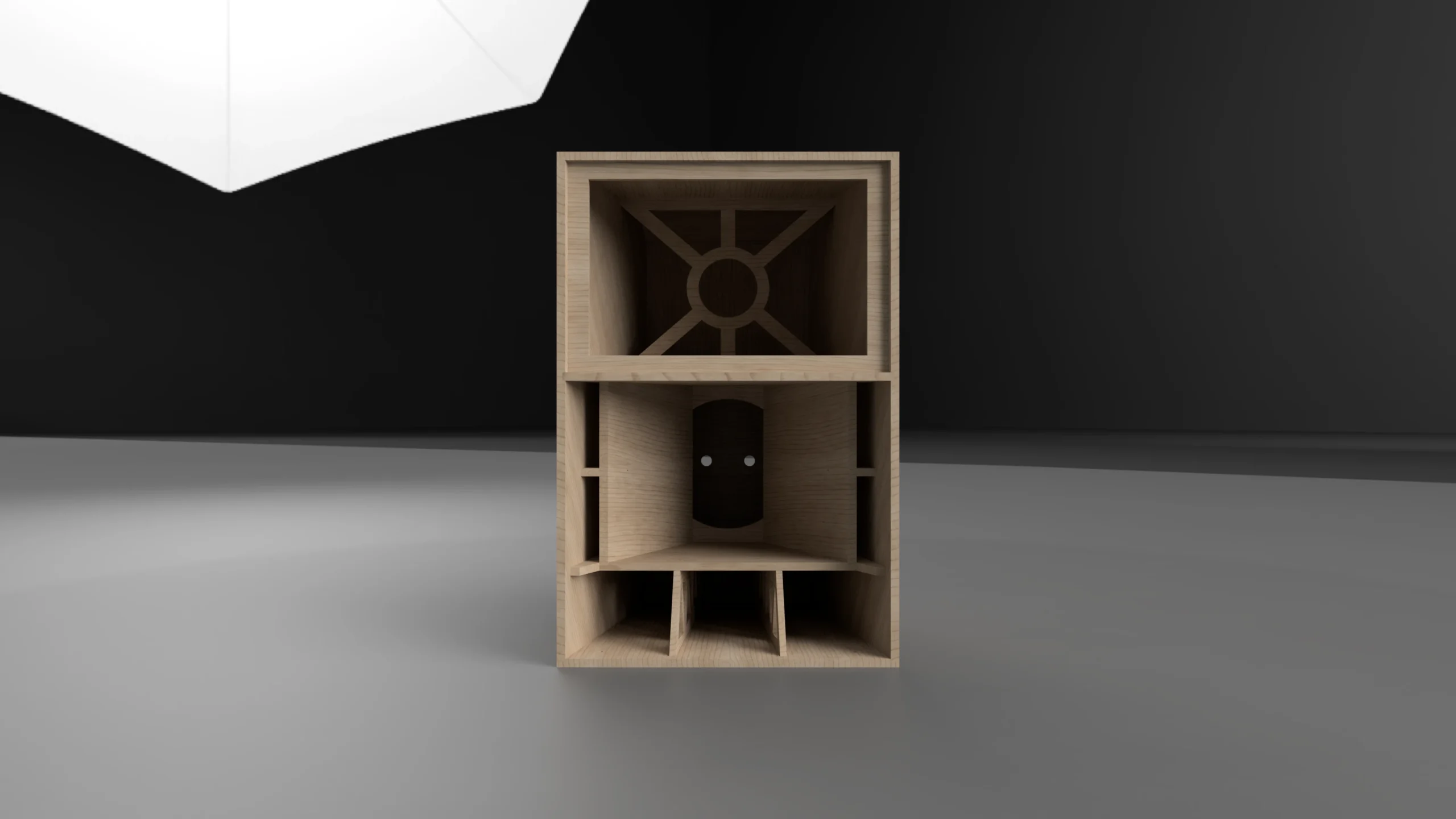

• Paraflex C-3D 1×12" Kick/Mid with integrated HOQS BH1 60x40 HF horn
• Premium 15mm 11-layer Baltic Birch
• Baffle cut to your choice of driver. (Please note drivers at check out!) - uses M5x10mm threaded inserts. Part: a16103100ux0956
• Horn mounted with M5x10mm threaded inserts. Part: a16103100ux0956

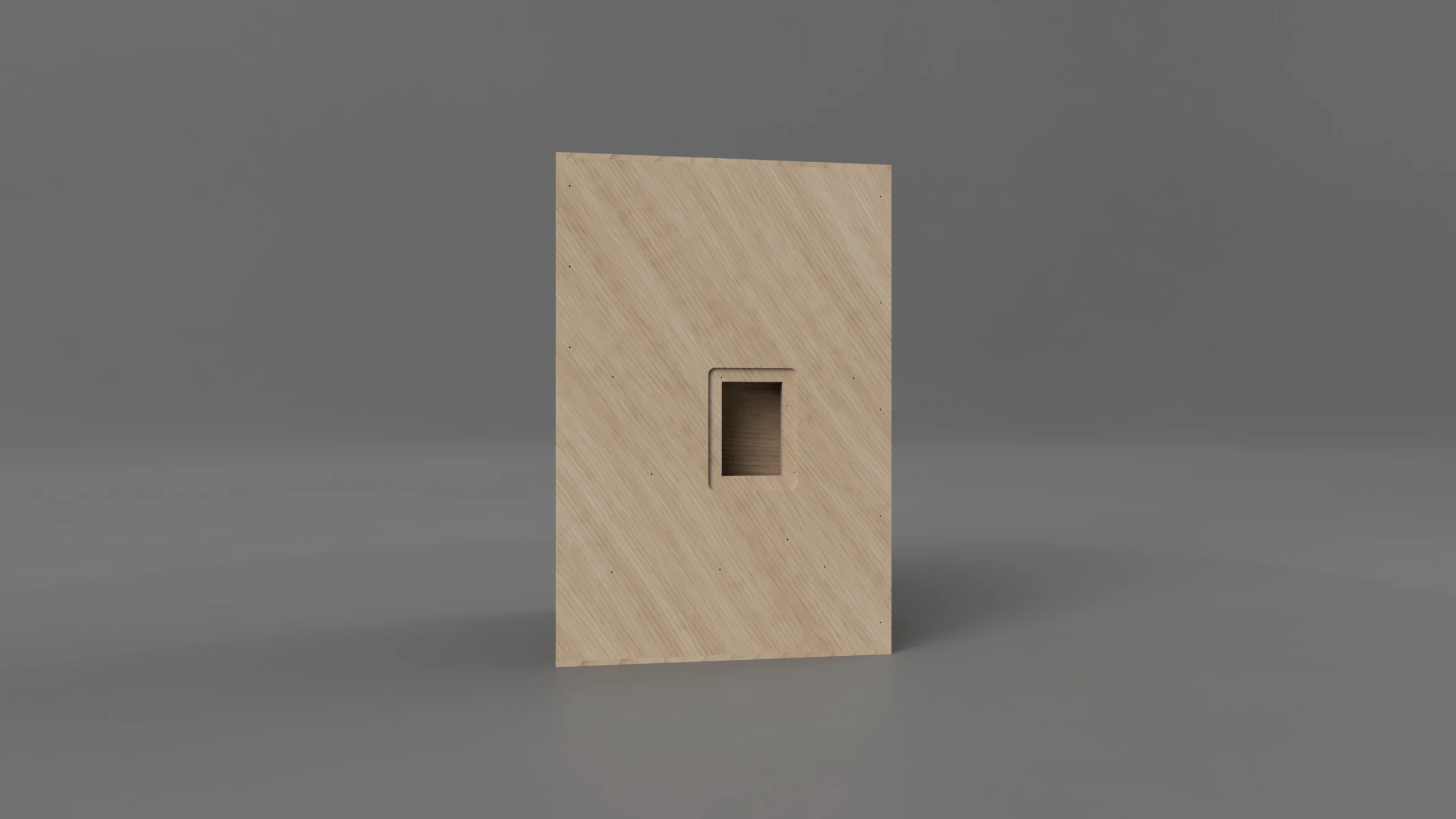

• Recessed handle cutouts. Part #262-821
• Recessed NL4 cutouts. Part #092-054
• Feet recesses on bottom and pockets on top
Part: Reliable Hardware Company RH-1606-8-A

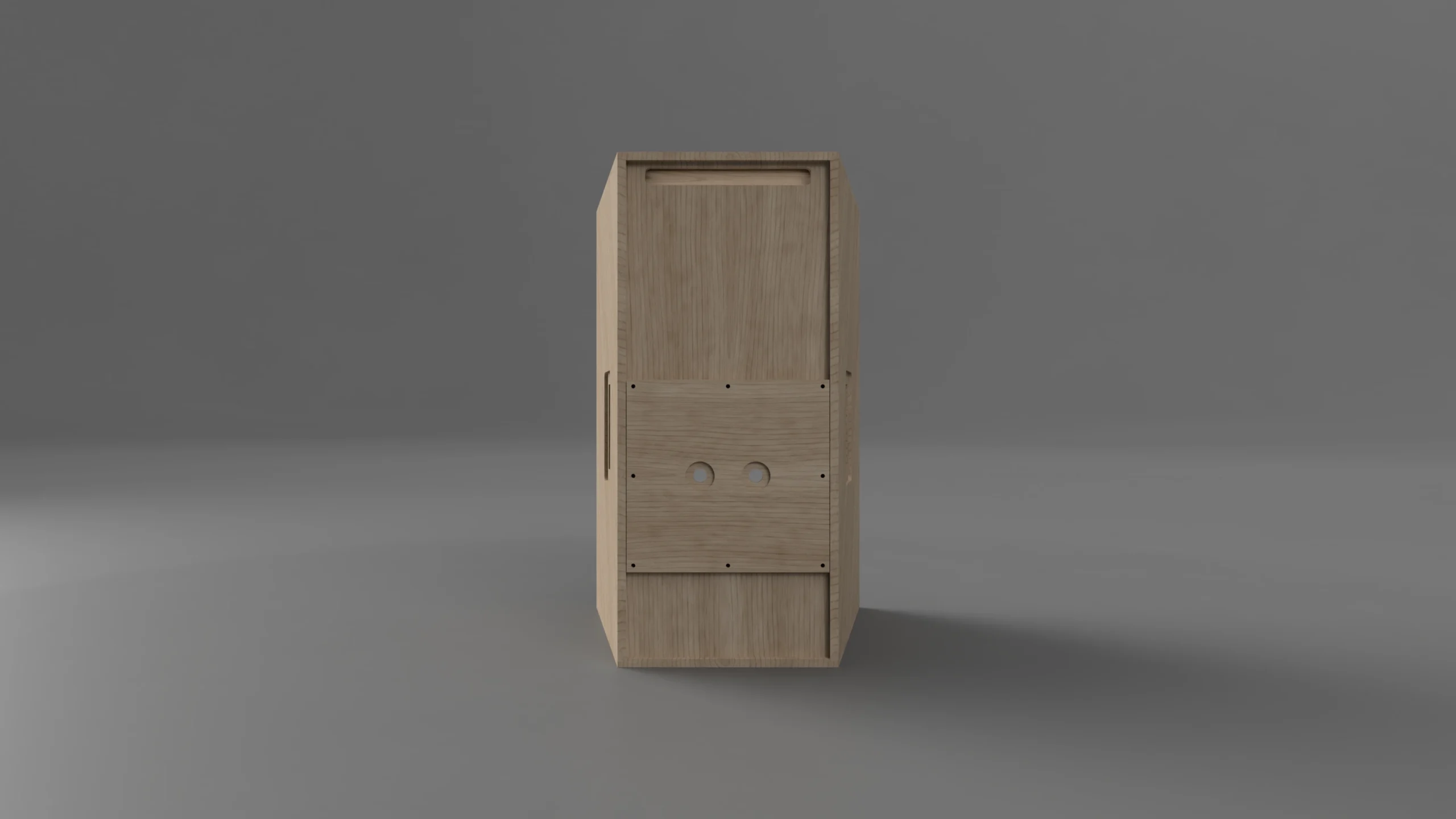

• Access panel holes drilled for 1/4"-20 T-Nuts
Design Specs
- Dimensions: 923mm tall x (620mm front / 405mm rear) x 620mm deep
- Shape: Trapezoid
- Internal Volume: 150 Liters
- Weight: 73 lbs
Operating Specs
• Fb: 77Hz
• Operating Range: 80Hz-20,000Hz
• Sensitivity: 80Hz-1,000Hz: 111dB avg. 1W@1M
• Maximum SPL: 138dB continuous 144dB Peak
***Using HOQS 12″ Driver 1/2 Space @ 1m***
Recommended Crossover Settings
- High Pass (HPF): 80Hz
- Low Pass (LPF): 1kHz
| Brand | |
|---|---|
| Brand | Paraflex |
| Tags | |
| Tags | 2-WayHigh/HF HornKick/Mid |
| Attributes | |
| Assembly | No AssemblyAssembly Included |
| Custom Logo | No LogoCustom Logo |
| Driver Count | 1 Driver |
| Driver Size | 12 Inch |
| Hardware Kit | No HardwareHardware Included Large |
