Paraflex C2E Silver 18/21" Subwoofer Speaker Kit
Flat pack speaker kit for a powerful subwoofer enclosure providing exceptional efficiency and low-frequency output.
Price range: $875.00 through $1,616.00

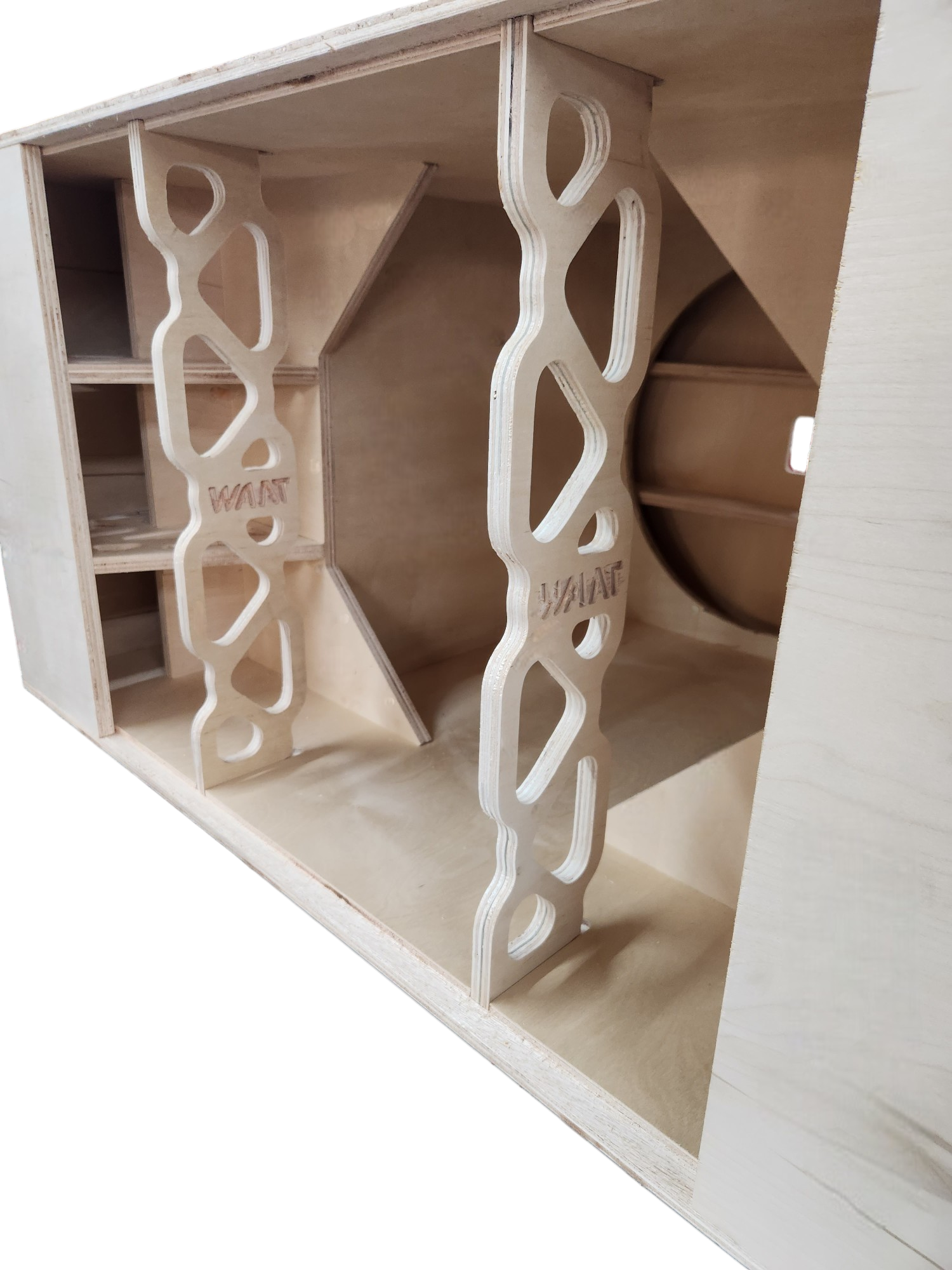

Ready to take on a serious subwoofer build? This flat pack speaker kit is just what you need! Included are all panels necessary to build the Paraflex C2E Silver Formula subwoofer enclosure, to host either an 18" or 21" driver. Each panel has been CNC-cut from 13-ply 18mm Baltic Birch plywood, and edges have been pre-sanded to allow for easy assembly.
Detailed Description:
• Paraflex C2E Silver Formula Subwoofer tuned to 32Hz
• Premium 18mm 13-layer Baltic Birch
• Double-baffle cut to your choice of driver. (Please note driver at check out!)
• Handle cutouts cut and recessed for Part #262-821
• Jack plate cut and recessed for Part #262-036 or #262-028
• Recessed feet on bottom/side and pockets on top/side
Part: Reliable Hardware Company RH-1606-8-A
• Holes for baffle drilled for 1/4"-20 T-nuts
Design Specs
- Dimensions: 1210mm x 915mm x 610mm
- Shape: Rectangular
- Internal Volume: 678 Litres
- Weight: 220 lbs
Operating Specs
• Fb: 32Hz
• Operating Range: 25Hz-120Hz
• Sensitivity: 32Hz-100Hz: 105.5dB avg 1w@1m
• Maximum SPL: 138dB continuous 144dB Peak
***Using HOQS 21″ Driver 1/2 Space @ 1m***
Recommended Crossover Settings
- High Pass (HPF): 25Hz
- Low Pass (LPF): 80Hz
| Brand | |
|---|---|
| Brand | Paraflex |
| Attributes | |
| Assembly | No AssemblyAssembly Included |
| Custom Logo | No LogoCustom Logo |
| Grill | No GrillGrill |
| Hardware Kit | No HardwareHardware Included Large |
| Pole Mount | No Pole MountThreaded Pole Mount |
