Paraflex C3D 2×12" Splayable Kick/Mids Tops Speaker Kit

Flat pack speaker kit for a dual driver trapezoidal kick/mid enclosure providing unmatched mid-bass punch without compromising midrange performance.

SKU: FP-C3D212

Price range: $650.00 through $1,167.50

Please let us know what driver you intend to use with this speaker kit

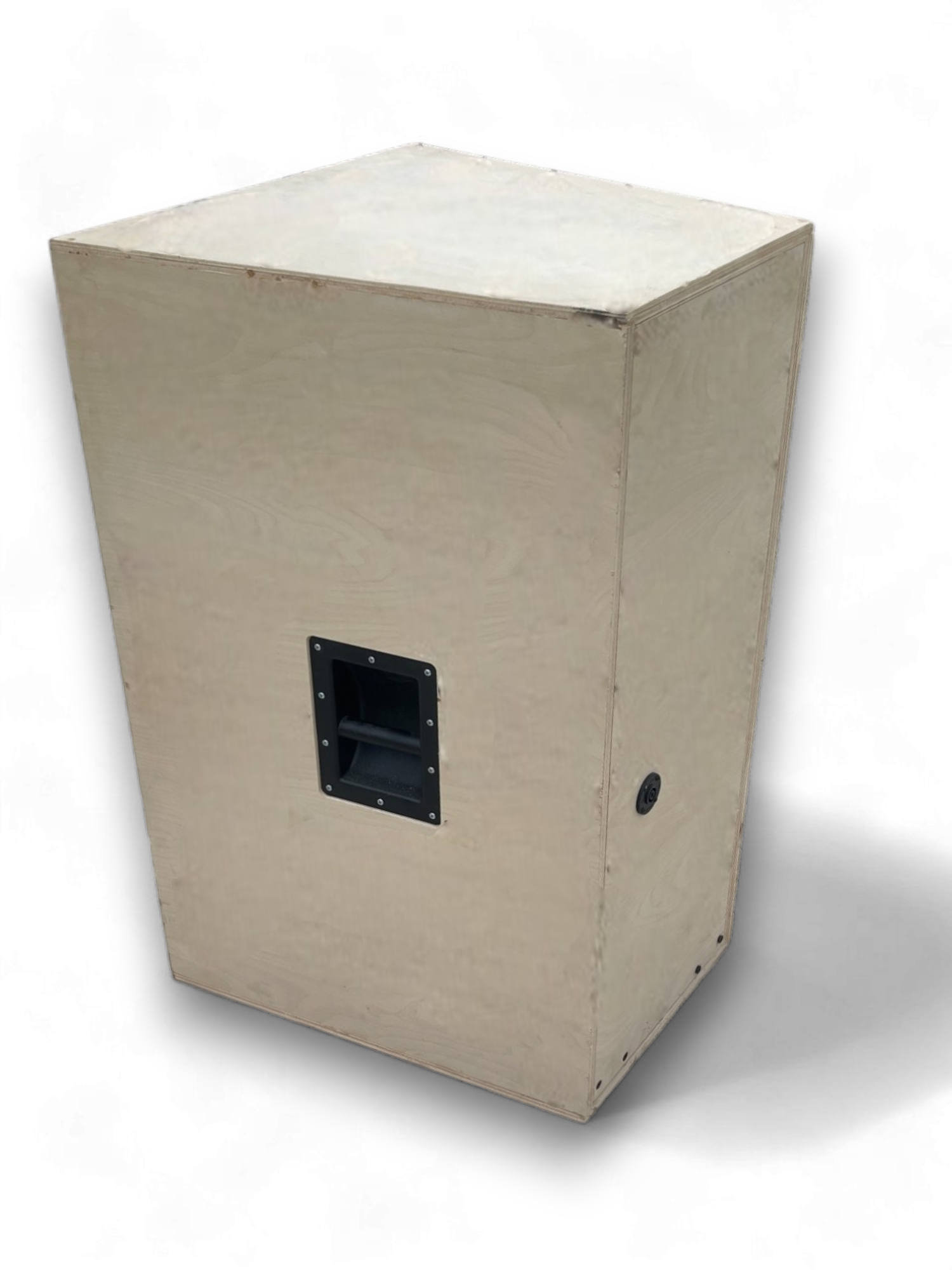

Is a single 12" kick/mid enclosure not enough for you, but you still want a single-box solution? Check out this flat pack speaker kit for the Paraflex C3D 2×12" enclosure! Included are all panels necessary for assembly. Each panel has been CNC-cut from premium-grade 11-layer 15mm Baltic Birch plywood. All panel edges have been pre-sanded to allow for easier assembly.

The C3D 2×12" enclosure not only houses two 12" drivers, but also provides some much needed elevation for your HF section! Twice as tall as a single C3D 1×12" cabinet and for some, easier to deploy than having to stack/unstack two single driver boxes. Great for that extra SPL in the same footprint AND a solution for the common problem of getting your high frequency section well above the heads in the crowd.

Duckbill phase plug kit available FOR USE WITH HOQS 12" DRIVER ONLY!
This kit increases the upper usable range of the C3D 1×12" from 1khz to 1.5khz, allowing for easy pairing with common high frequency drivers and horns.

We have integrated feet recesses into the top of the enclosure that accommodate any of the high frequency horn enclosures we offer in two configurations:
1. Single C3D with single horn enclosure facing front
2. Splayed C3Ds with single horn enclosure centered between
Footwells also accommodate our single enclosure low profile tilt board.

Detailed Description:

• Paraflex C-3D 2×12"
• Premium 15mm 11-layer Baltic Birch
• Baffle cut to your choice of driver. (Please note drivers at check out!)
• Baffle drilled to use M5x10mm threaded inserts. Part #a16103100ux0956
• Recessed handle cutouts. Part #262-821
• Recessed NL4 cutouts. Part #092-054
• Feet recesses on bottom and pockets on top. Part #RH-1606-8-A
• Holes drilled to attach feet for 1/4"-20 T-Nuts.
• Access panel holes drilled for 1/4"-20 T-Nuts

Design Specs

  • Dimensions: 1040mm x (600mm front / 383mm rear) x 1000mm
  • Shape: Trapezoid
  • Internal Volume: 300 Litres
  • Weight: 85 lbs

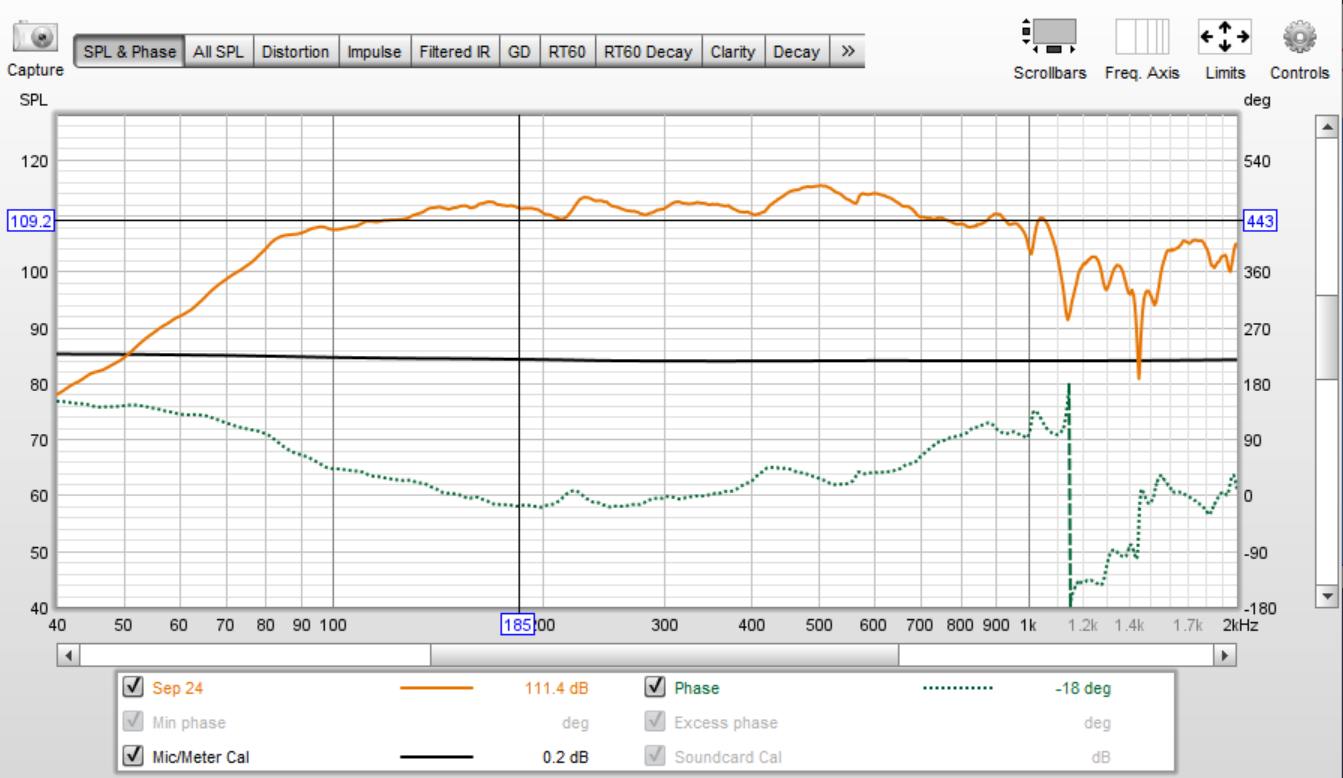

Operating Specs

• Fb: 77Hz
• Operating Range: 80Hz-1,000Hz
• Sensitivity: 80Hz-1,000Hz: 111dB avg. 1W@1M
• Maximum SPL: 140dB continuous 146dB Peak
***Using HOQS 12" Driver 1/2 Space @ 1m***

Recommended Crossover Settings

  • High Pass (HPF): 80Hz
  • Low Pass (LPF): 1kHz
