Paraflex C3D 1×12" Splayable Kick/Mid Top Speaker Kit

Flat pack speaker kit for the trapezoidal Paraflex C3D 1×12" Kick/Mid enclosure providing excellent mid-bass punch without compromising midrange performance.

SKU: FP-C3D112

Price range: $445.00 through $1,020.25

Please let us know what driver you intend to use with this speaker kit

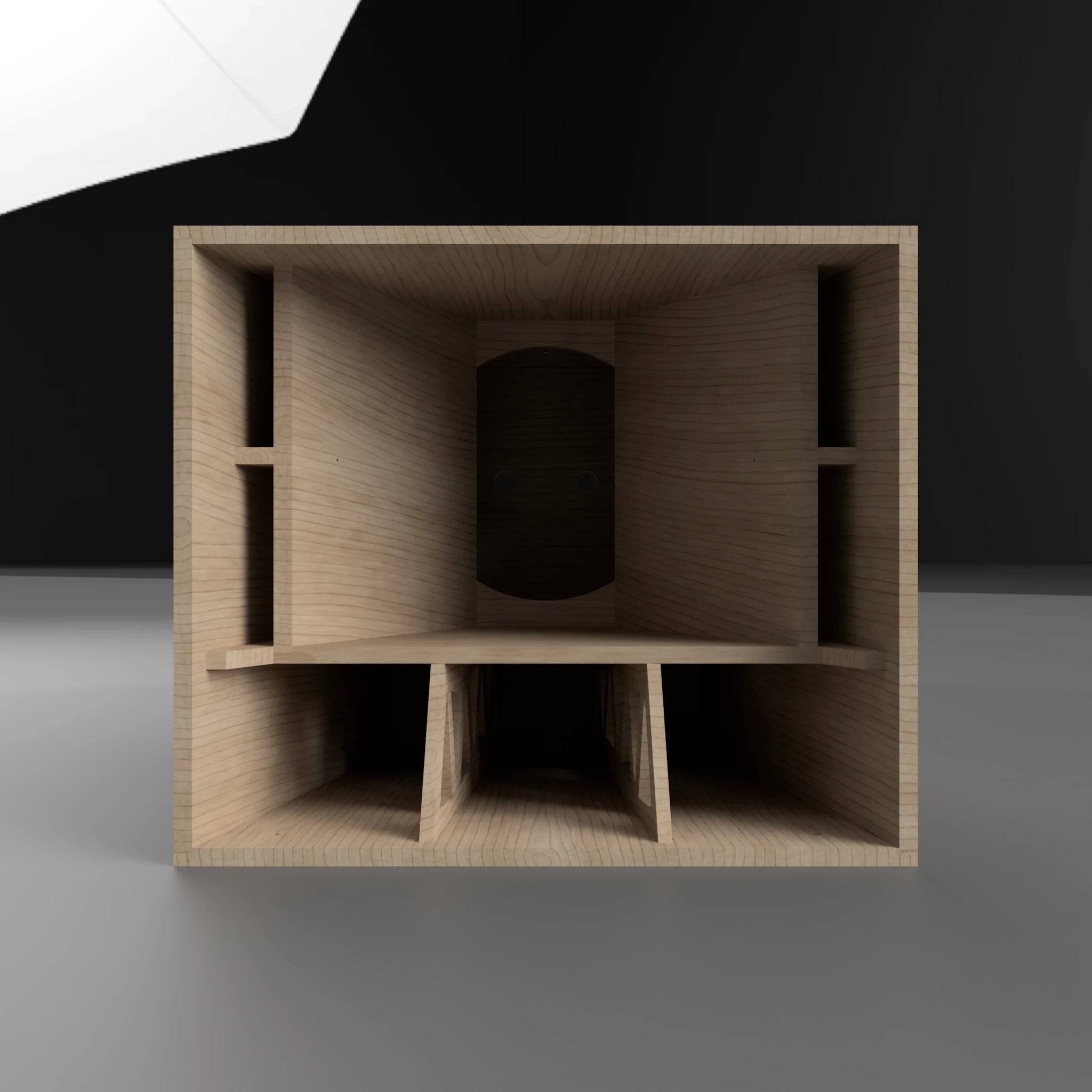

Looking to build your next kick/mid section for your sound system? Consider this flat pack speaker kit for the Paraflex C-3D 1×12" Kick/Mid enclosure. Included are all panels necessary for assembly. Each panel is CNC-cut from premium 11-layer 15mm Baltic Birch plywood, and edges have been pre-sanded to allow for easy assembly.

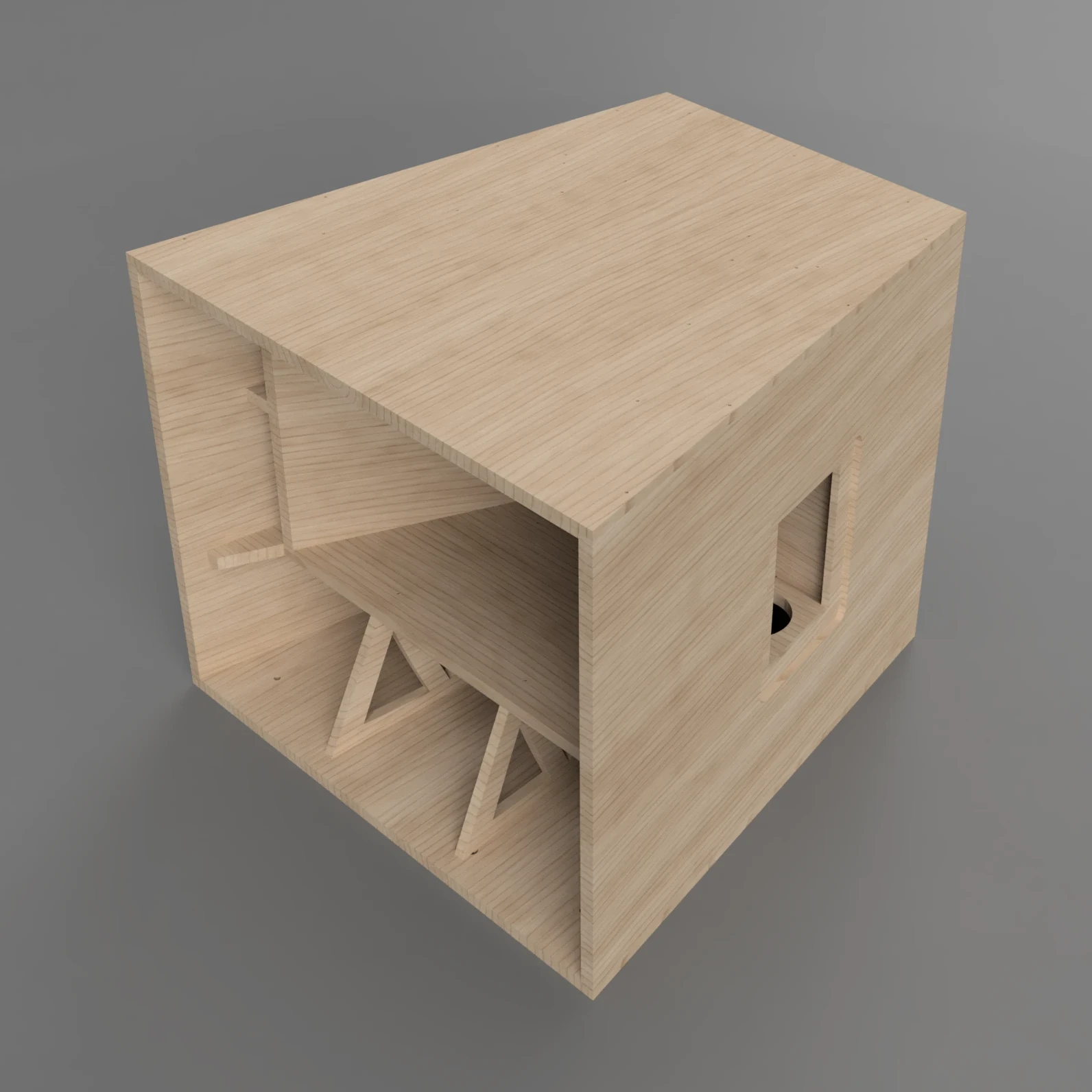

The Paraflex C3D 1x12" is a kick/mid enclosure designed for unmatched performance with a high degree of deployment flexibility and ergonomic friendliness. While having excellent response up to 1kHz, the C3D kick/mid also has exceptional low-mid extension right down to 80Hz, providing an impressive degree of tactility and punch for a 12" driver. Thanks to its trapezoidal shape, the C3D kick/mid can be deployed to meet a number of configuration requirements. Use them in singles for small to medium sized events, or splay and/or stack them to increase your height, coverage and SPL capabilities for the largest crowds!

Duckbill phase plug kit available FOR USE WITH HOQS 12" DRIVER ONLY!
This kit increases the upper usable range of the C3D 1×12" from 1khz to 1.5khz, allowing for easy pairing with common high frequency drivers and horns.

We have integrated feet recesses into the top of the enclosure that accommodate any of the high frequency horn enclosures we offer in two configurations:
1. Single C3D with single horn enclosure facing front
2. Splayed C3Ds with single horn enclosure centered between
Footwells also accommodate our single enclosure low profile tilt board.

Detailed Description:

• Paraflex C-3D 1×12" Kick/Mid
• Premium 15mm 11-layer Baltic Birch
• Baffle cut to your choice of driver. (Please note drivers at check out!)
• Baffle drilled to use M5x10mm threaded inserts. Part #a16103100ux0956

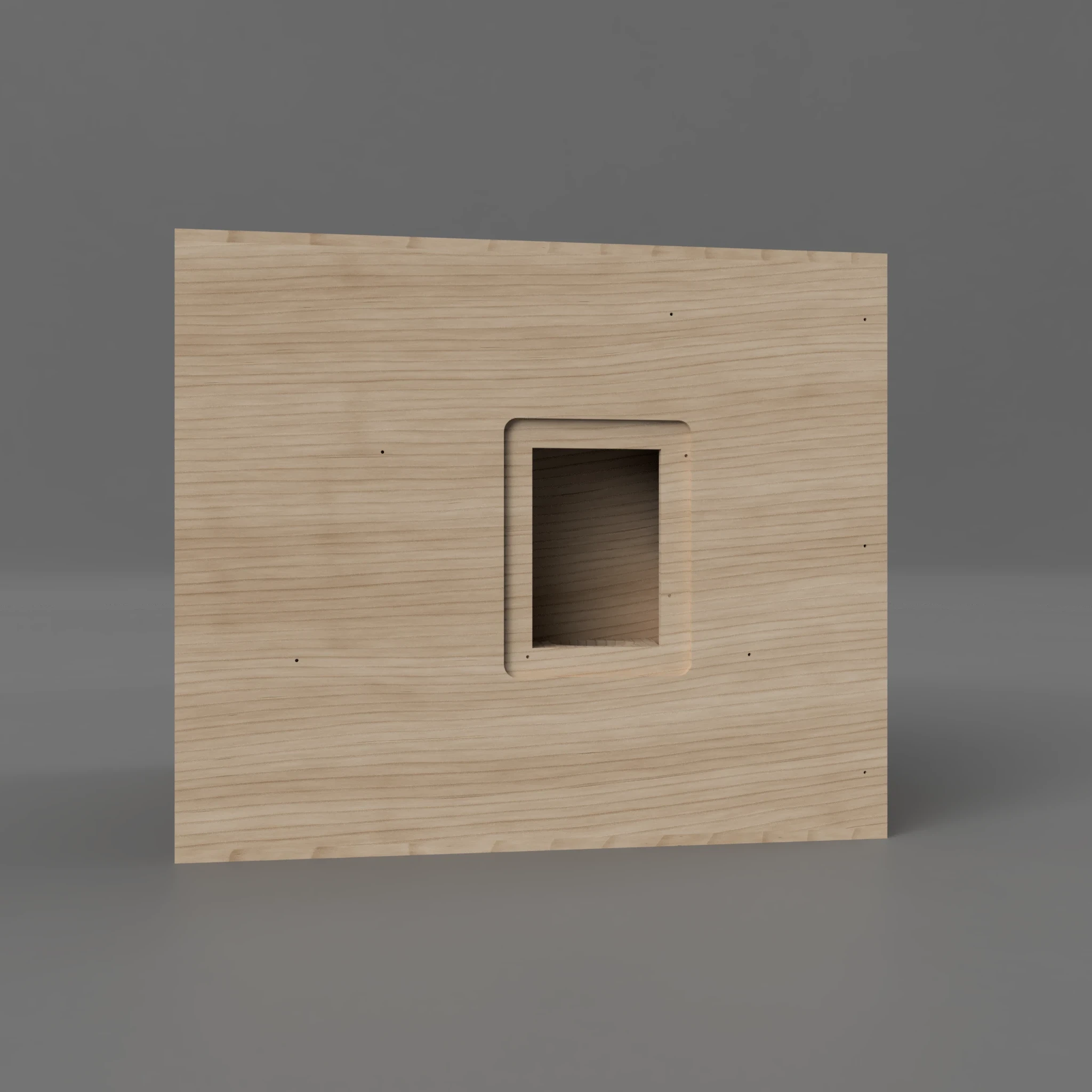

• Recessed handle cutouts. Part #262-821
• Recessed NL4 cutouts. Part #092-054
• Feet recesses on bottom and pockets on top. Part #RH-1606-8-A
• Holes drilled to attach feet for 1/4"-20 T-Nuts.

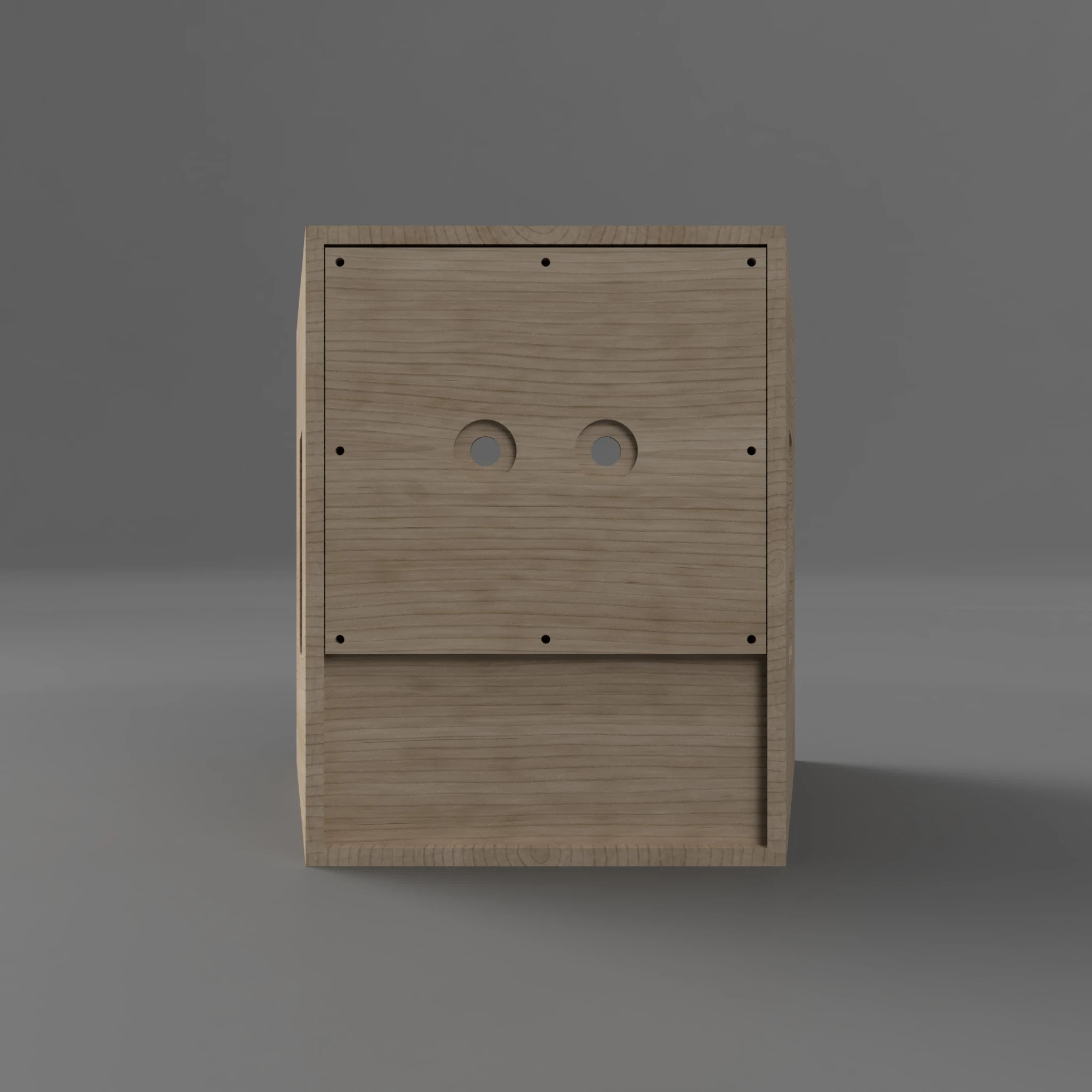

• Access panel holes drilled for 1/4"-20 T-Nuts

Design Specs

  • Dimensions: 530mm tall x 620mm wide (front) / 405mm wide (rear) x 620mm deep
  • Shape: Trapezoid
  • Internal Volume: 150 Liters
  • Weight: 55 lbs

Recommended Drivers

  • HOQS N123

Operating Specs

• Fb: 77Hz
• Operating Range: 80Hz-1,000Hz
• Sensitivity: 80Hz-1,000Hz: 111dB avg. 1W@1M
• Maximum SPL: 138dB continuous 144dB Peak
***Using HOQS 12″ Driver 1/2 Space @ 1m***

Recommended Crossover Settings

  • High Pass (HPF): 80Hz
  • Low Pass (LPF): 1kHz W/O phase plug, 1.2-1.5kHz with phase plug
Brand
Brand
HOQS
Tags
Tags
Kick/Mid
Attributes
Assembly
No AssemblyAssembly Included
Custom Logo
No LogoCustom Logo
Driver Count
1 Driver
Driver Size
12 Inch
Hardware Kit
No HardwareHardware Included Large
Phase Plug Kit
No Phase PlugDuckbill Phase Plug
