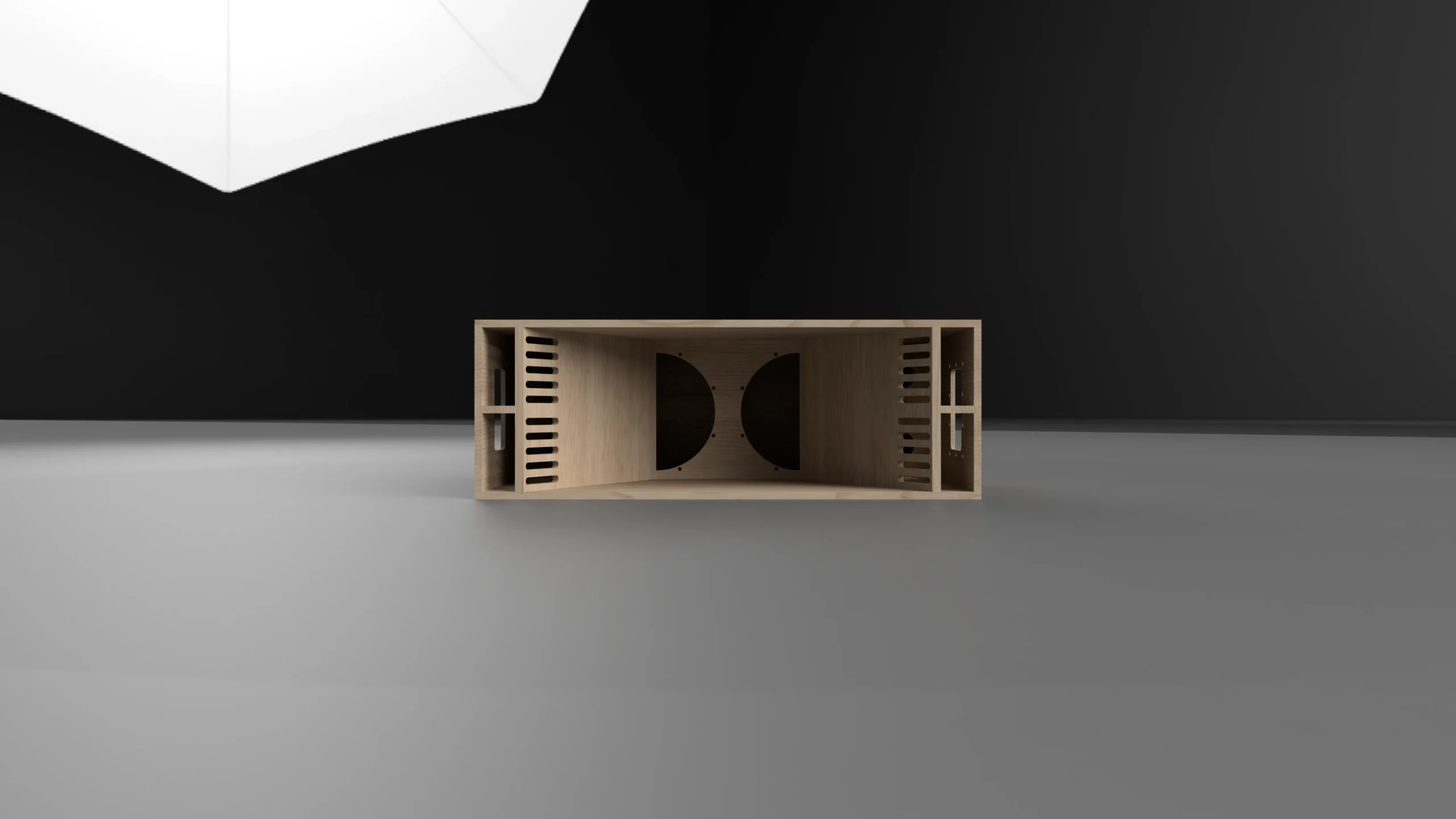

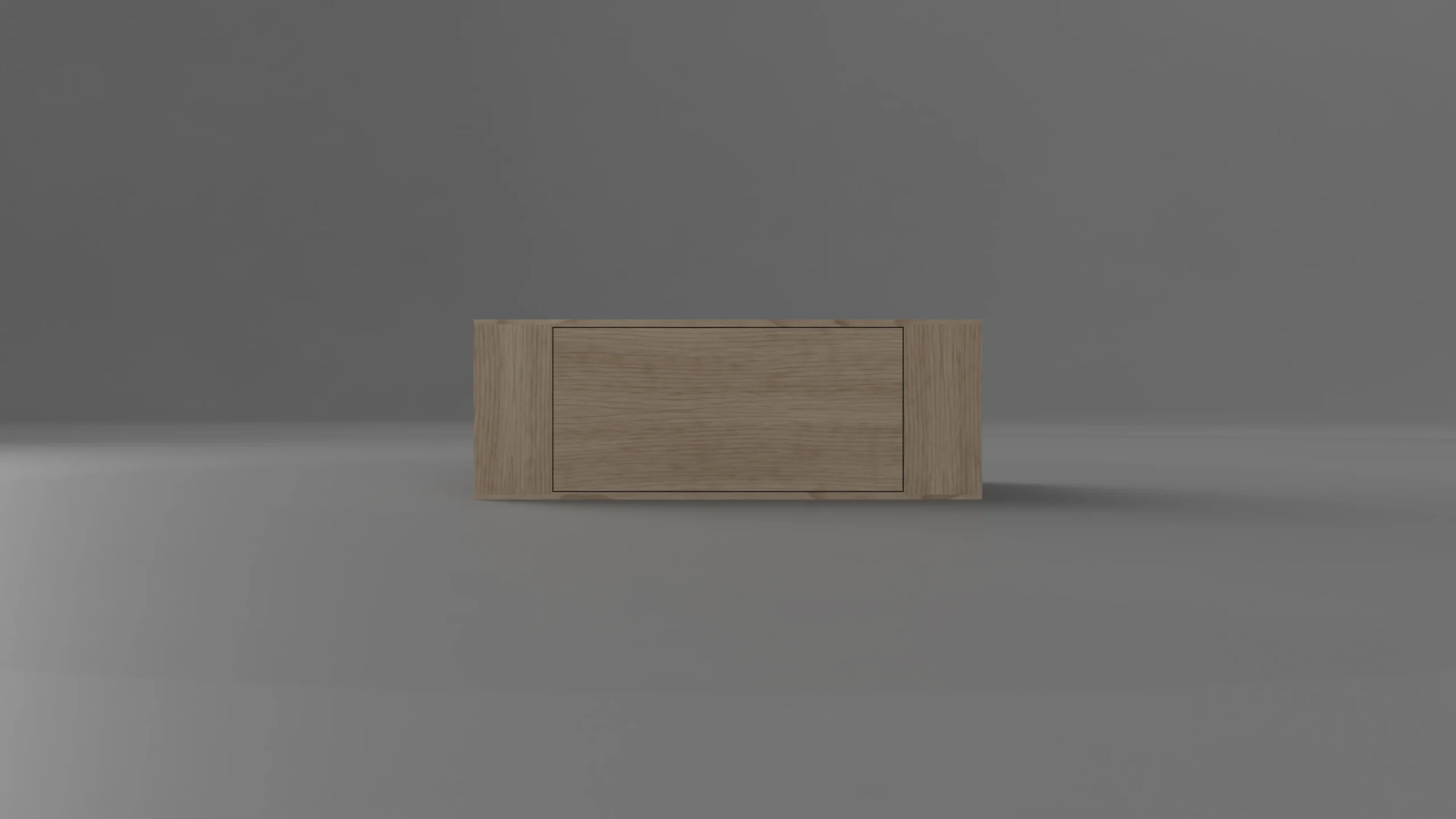

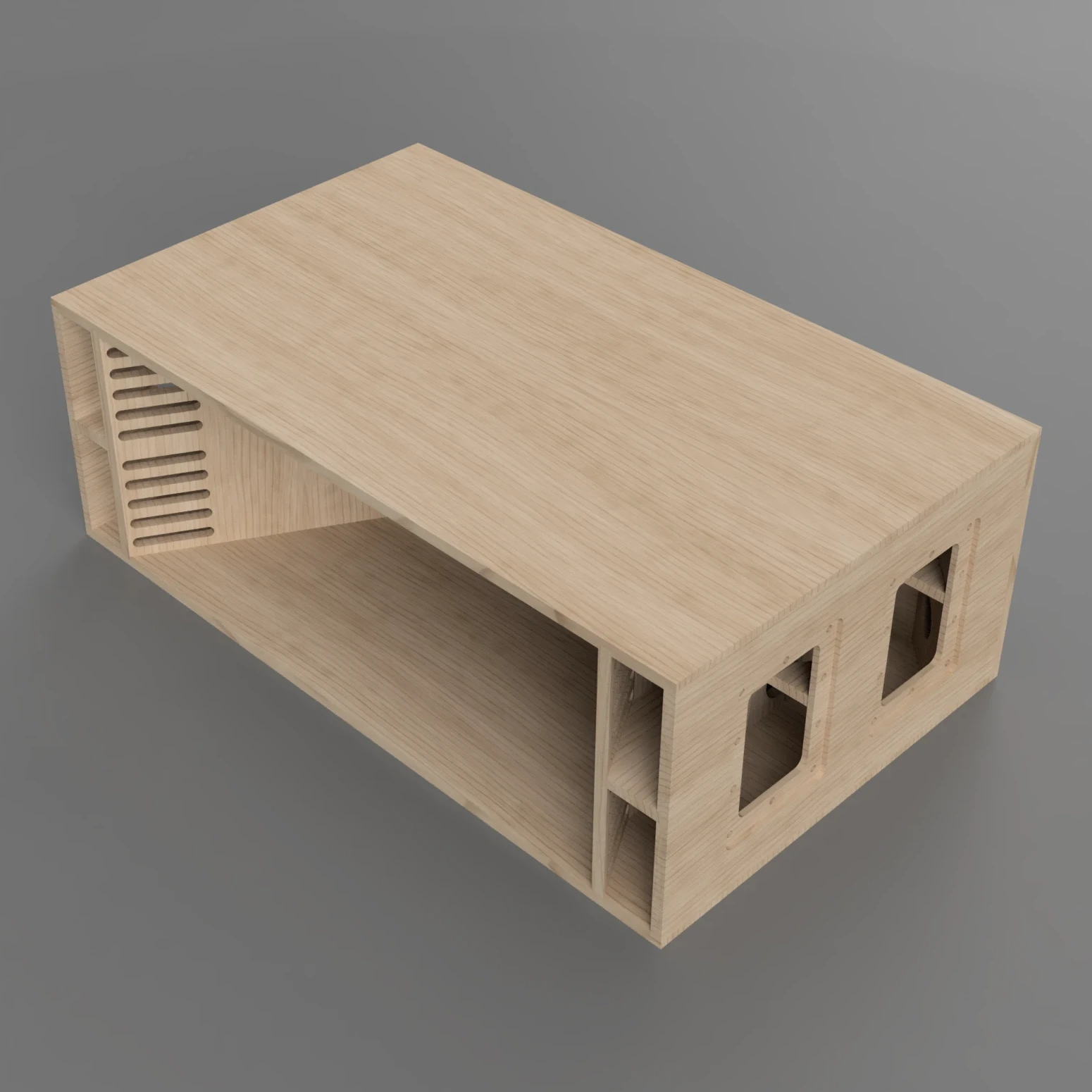

Paraflex 2×12" Wide Style V2 Kick/Mid Speaker Kit
Flat pack speaker kit for a wide-format 2x12" kick-mid enclosure designed for serious mid-bass output.
Price range: $650.00 through $1,135.00
Are you considering building a kick/mid enclosure for your sound system and need a wider-footprint enclosure suitable for line-source/line-array configurations? Check out this flat pack speaker kit for the Paraflex 2x12" Wide-Style V2 Kick/Mid enclosure. Included are all panels necessary for assembly. Each panel has been CNC-cut from premium 11-layer 15mm Baltic Birch plywood. Additionally, all panel edges have been pre-sanded to allow for ease of assembly.
Detailed Description:
• Paraflex 2x12" Wide Style Kick/Mid enclosure
• Premium 15mm 11-layer Baltic Birch
• Baffle cut to your driver of choice (Please note driver at check out!) - uses M5x10mm threaded inserts. Part: a16103100ux0956

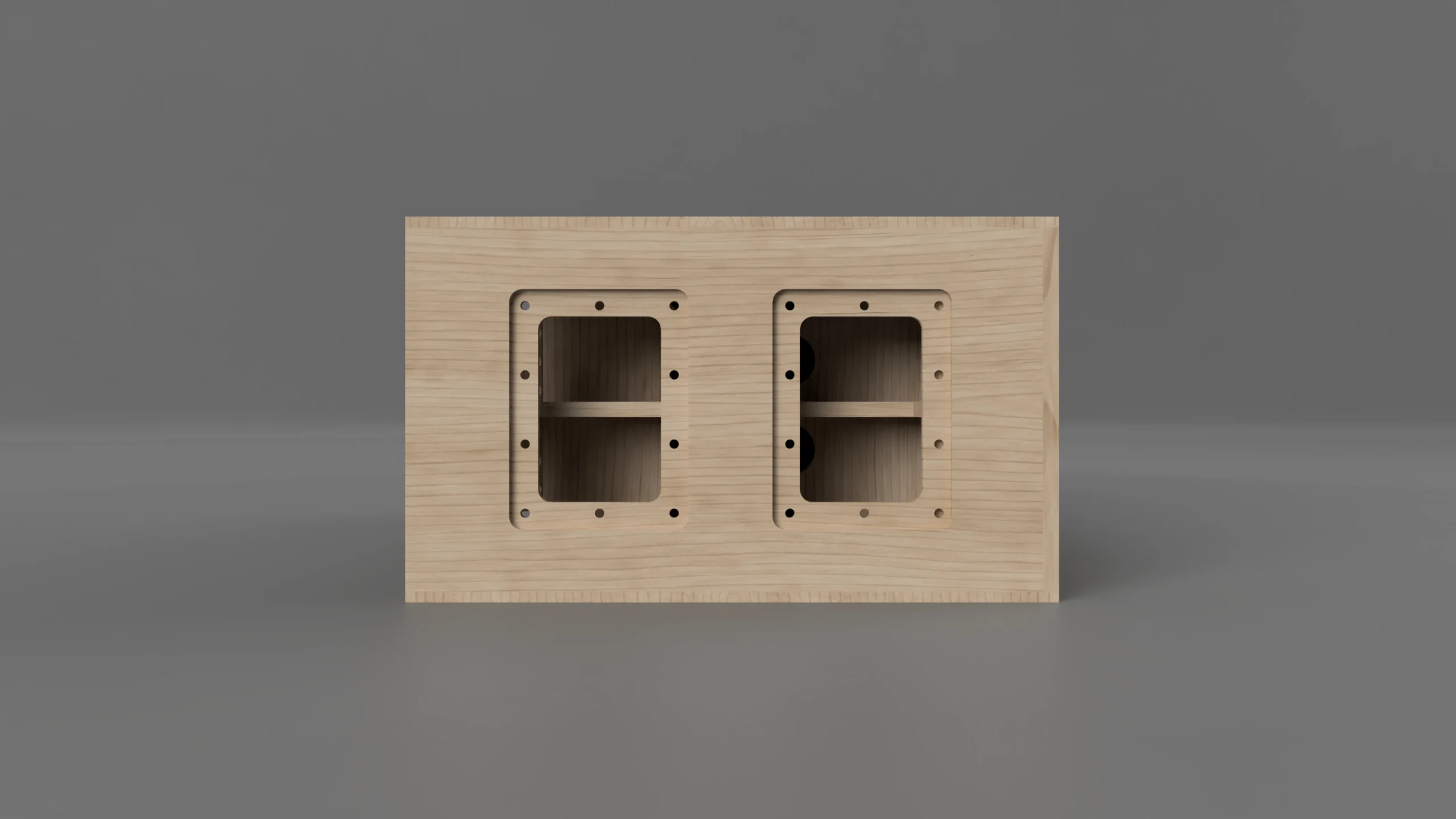

• Recessed handle cutouts. Part #262-821
• Recessed NL4 cutouts. Part #092-054
• Feet recesses on bottom and pockets on top. Part: Reliable Hardware Company RH-1606-8-A
• Access panel hole drilled for 1/4"-20 T-nuts
Design Specs
- Dimensions: 1016mm x 610mm x 360mm
- Shape: Rectangular
- Internal Volume: 223 Litres
- Weight: 70 lbs
- Driver Count: 2
Recommended Drivers
- HOQSN123
Operating Specs
• Operating Range: 90Hz-700Hz
• Sensitivity: 90Hz-700Hz: 108dB avg. 1W@1M
• Maximum SPL: 138dB continuous 144dB Peak
***Using HOQS 12" Driver 1/2 Space @ 1m***
Recommended Crossover Settings
- High Pass (HPF): 80Hz
- Low Pass (LPF): 800Hz
| Brand | |
|---|---|
| Brand | Paraflex |
| Tags | |
| Tags | Kick/Mid |
| Attributes | |
| Assembly | No AssemblyAssembly Included |
| Custom Logo | No LogoCustom Logo |
| Driver Count | 2 Drivers |
| Driver Size | 12 Inch |
| Hardware Kit | No HardwareHardware Included Large |
| Other Details | |
| Product Id | 2121 |
| Product Mapping | 2121 |
