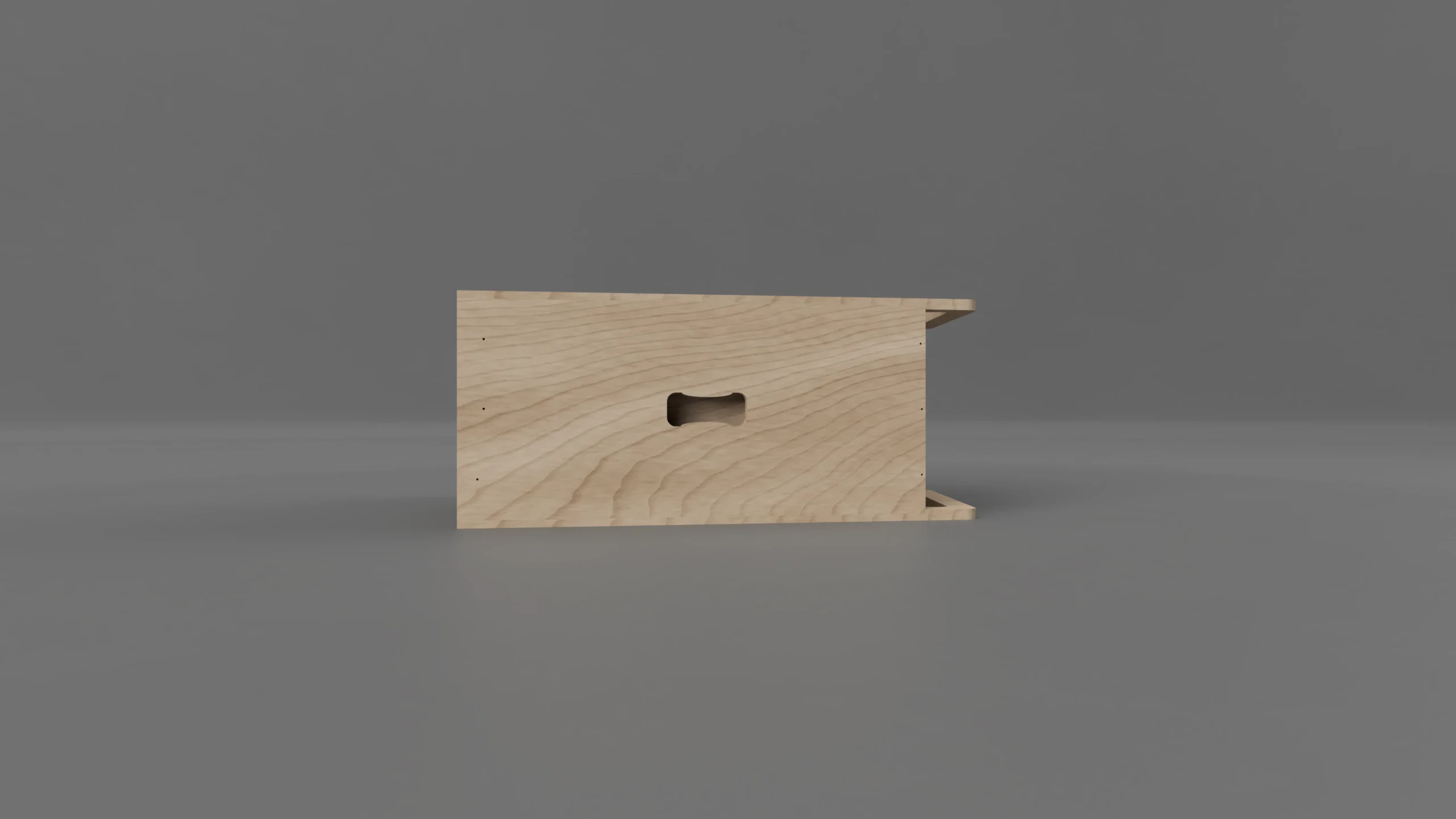

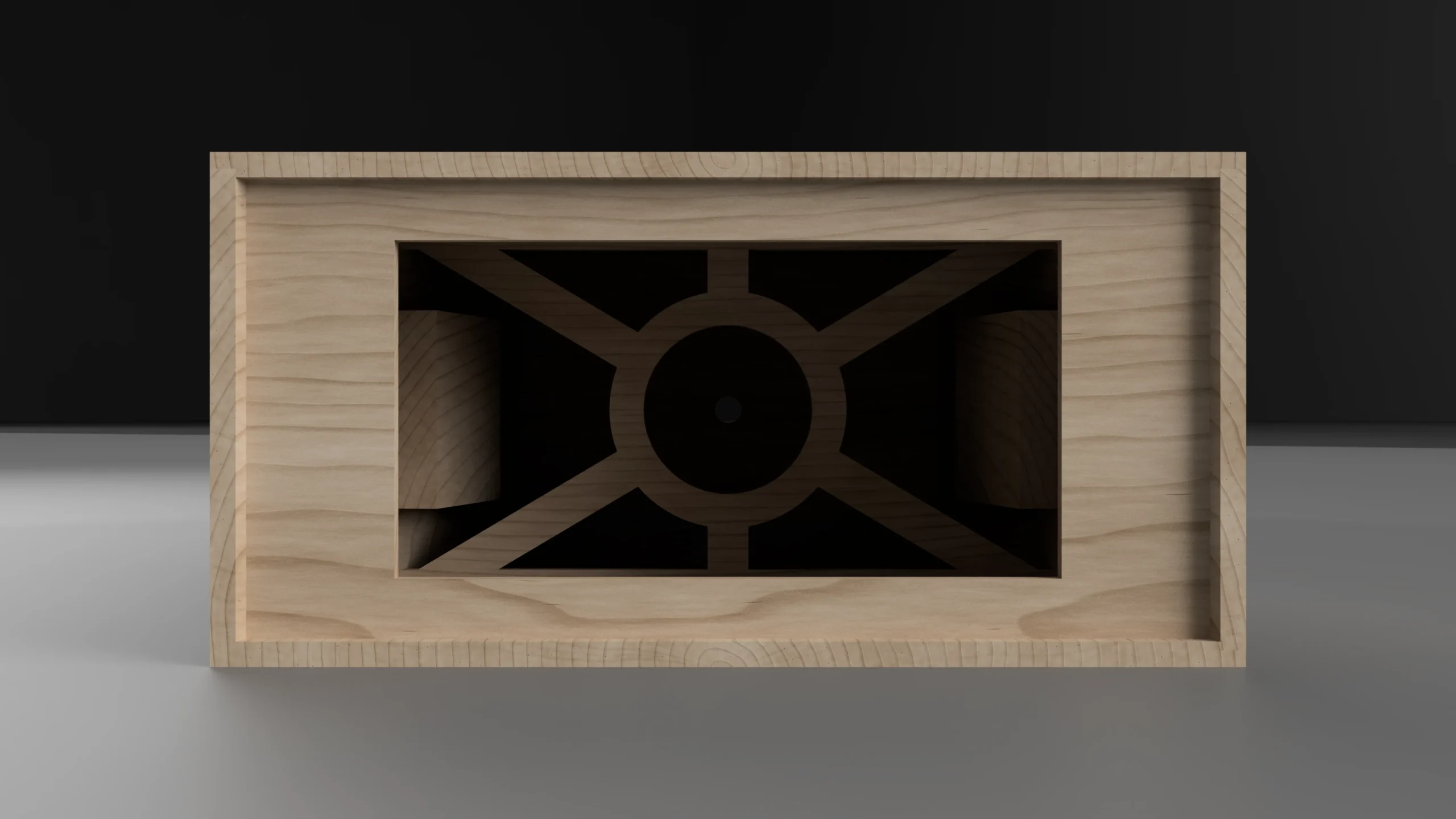

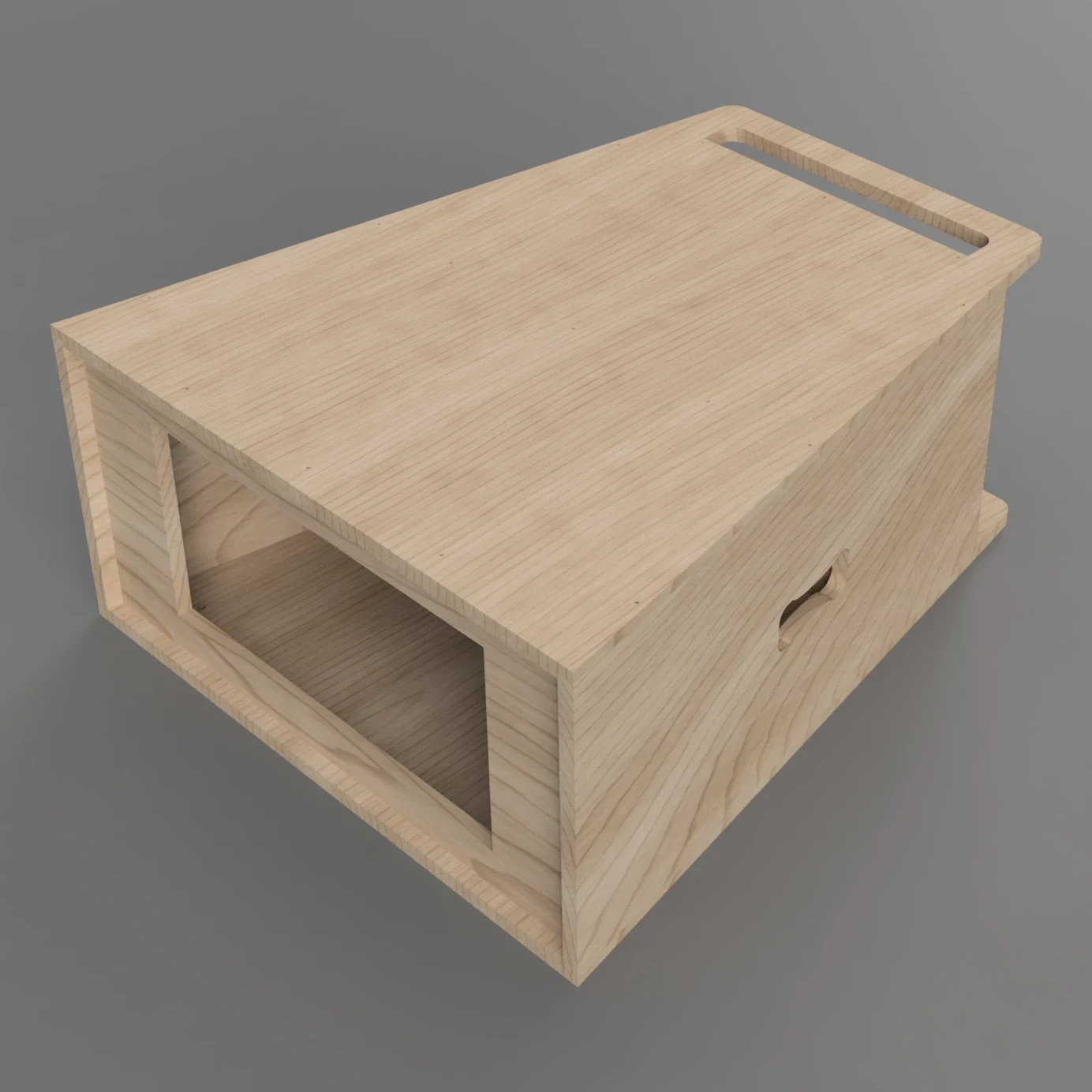

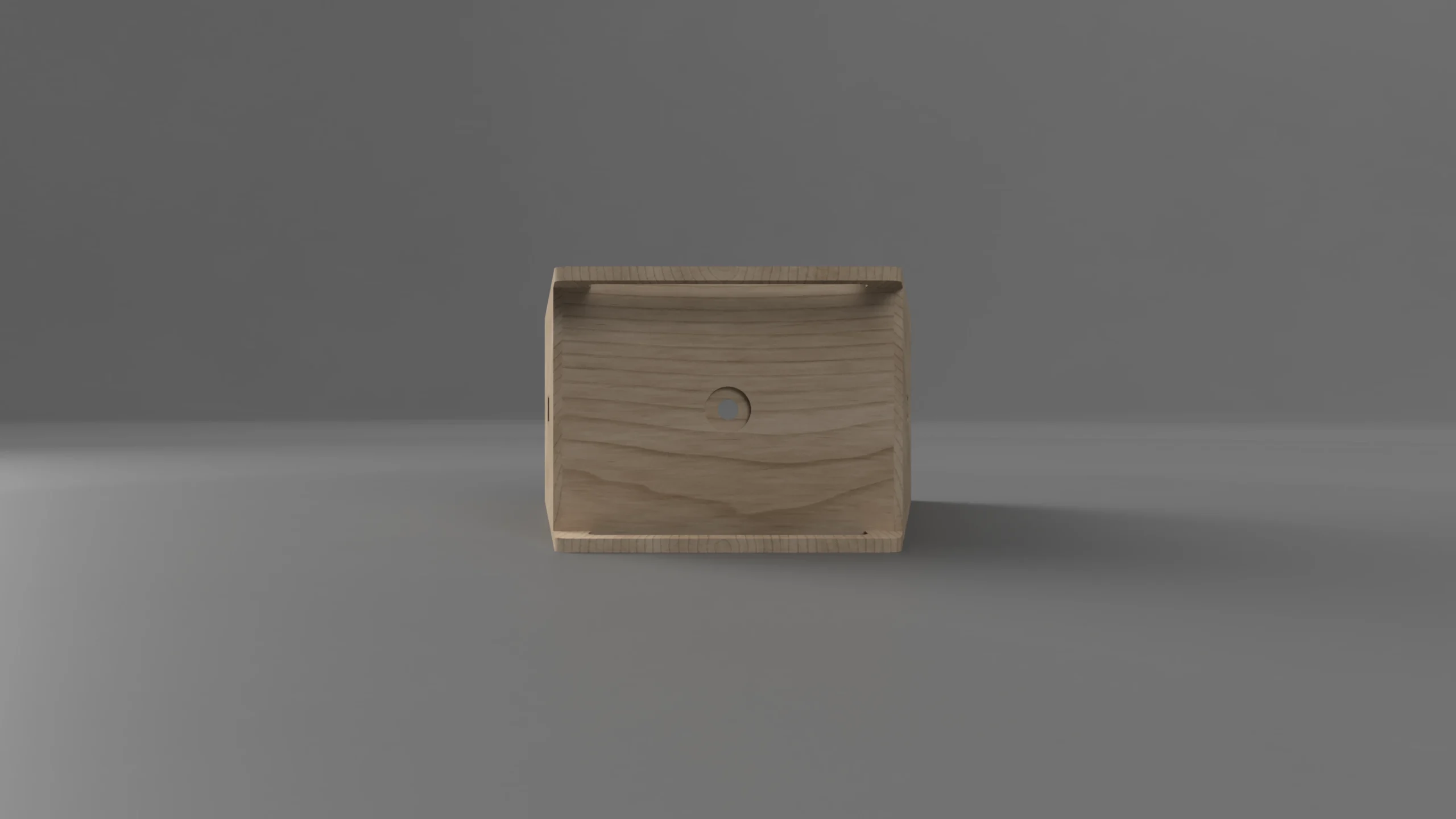

HF 90x40 Horn Enclosure Speaker Kit

Don't forget your high-frequency section! Included in this flat pack speaker kit are all panels required to construct your very own enclosure for the Goldwood GM-450PB 2" HF waveguide. This enclosure has been sized to fit perfectly over top of the Paraflex C-3D kick/mid 1x12" and 2x12" enclosures. Each panel has been CNC-cut from premium 11-layer 15mm Baltic Birch plywood. Additionally, all panel edges have been pre-sanded to allow for easy assembly.

Detailed Description:

• Enclosure to house the Goldwood GM-450PB 90x40 horn
• Premium 15mm 11-layer Baltic Birch
• Integrated wood handles
• Recessed NL4 cutout for Part #092-054
• Recessed feet on bottom Part: Reliable Hardware Company RH-1606-8-A
• Holes for baffle drilled for M5 threaded inserts.

Design Specs

• Dimensions: 305mm x (600mm front / 383mm rear) x 1000mm
• Shape: Trapezoid
• Weight: 32 lbs

Recommended Drivers

• HOQSHF143N

Operating Specs

• Nominal Coverage Horizontal: 90°
• Nominal Coverage Vertical: 40°
• Lower Frequency Cutoff: -3dB at 500Hz
• Frequency Range: 500Hz -18,000Hz

Recommended Crossover Settings

• High Pass (HPF): 1kHz
