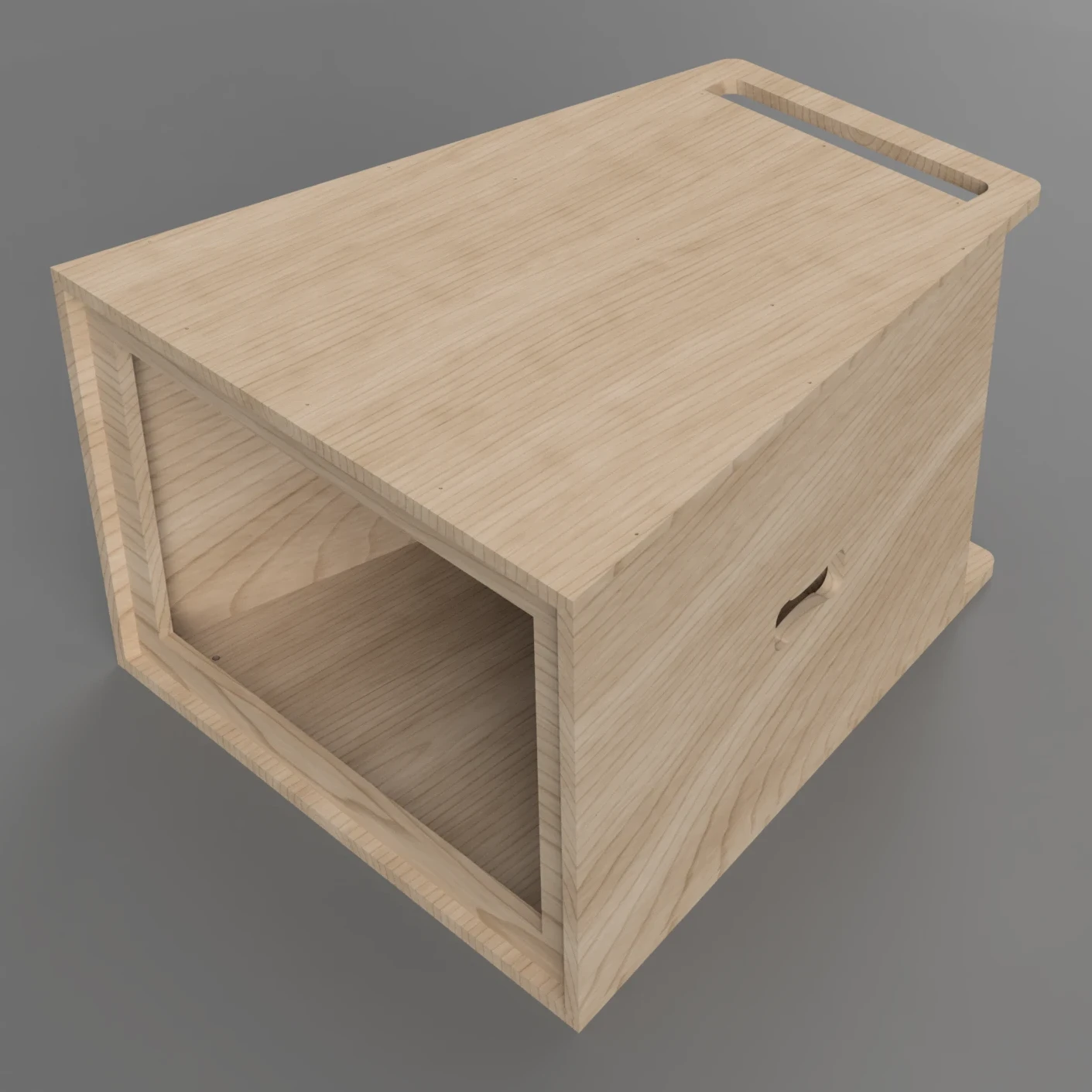

HF 60°×40° Horn Enclosure Speaker Kit

Flat pack speaker kit for the HOQS BH1 60°×40° waveguide.

SKU: FP-HF60x40

Price range: $245.00 through $530.25

Please let us know what driver you intend to use with this speaker kit

Don't forget your high-frequency section! Included in this flat pack speaker kit are all panels required to construct your very own enclosure for the HOQS BH1 60°×40° HF waveguide. Each panel has been CNC-cut from premium 11-layer 15mm Baltic Birch plywood. Additionally, all panel edges have been pre-sanded to allow for easy assembly.

This enclosure has been sized to fit perfectly over top of the Paraflex C3D 1×12" and 2×12" Kick/Mid cabinets.

Check out our low profile 4 position tilt board to aim those frequencies down at the crowd instead of over their heads!

What dispersion is right for your deployment?

A single HF 60°×40° Horn per side is suited to narrower/deeper spaces with tighter directivity to minimize unwanted reflections.

If you're intending to expand your system and splay your kicks AND horns (two horns per side) then the HF 60°×40° Horn is a solid choice.

Want more coverage while only running one horn per side? Have a look at the HF 60°×40° Horn enclosure or the high performance WB5000 family utilizing a large format ME464 80°×60° horn coupled with the incredible DCX464 coaxial compression driver.

All of our HF horns have the same footprint for use with our low profile 4 position tilt board and/or fit directly on top of the C3D Kick/Mid family in the recessed footwells.

Detailed Description:

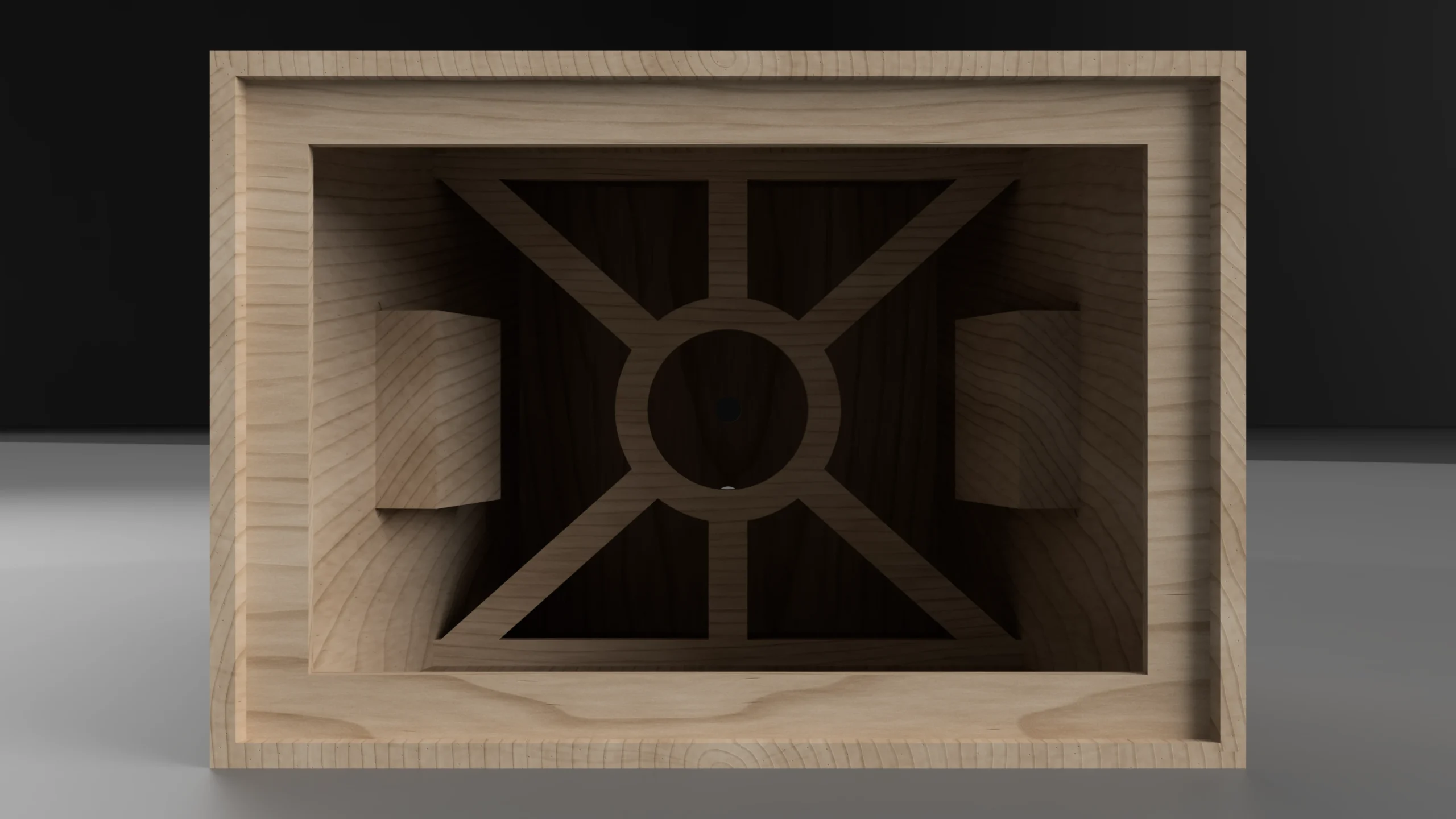

• Enclosure to house the HOQS BH1 60°×40° horn
• Premium 15mm 11-layer Baltic Birch

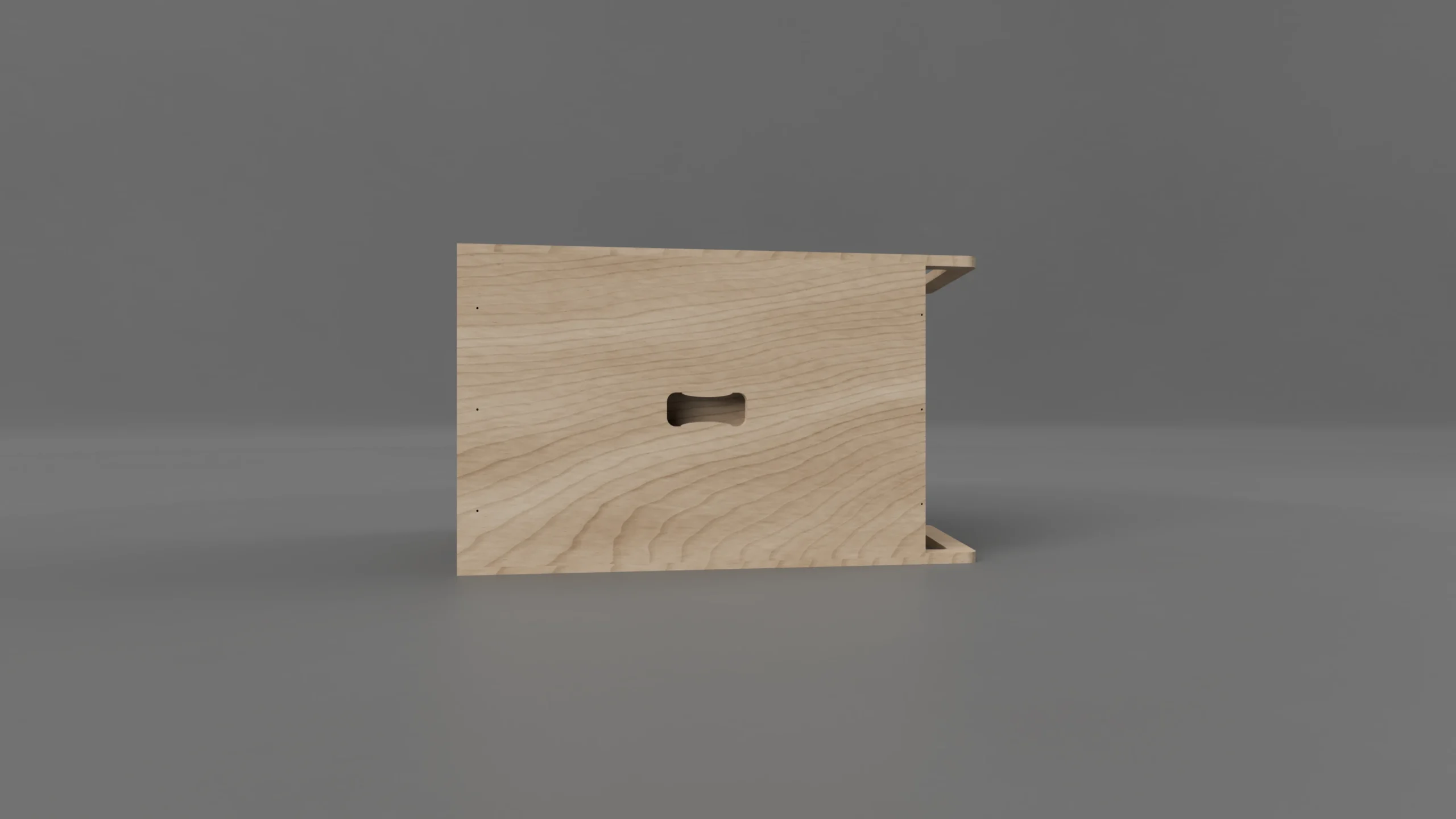

• Integrated wood handles on sides and back

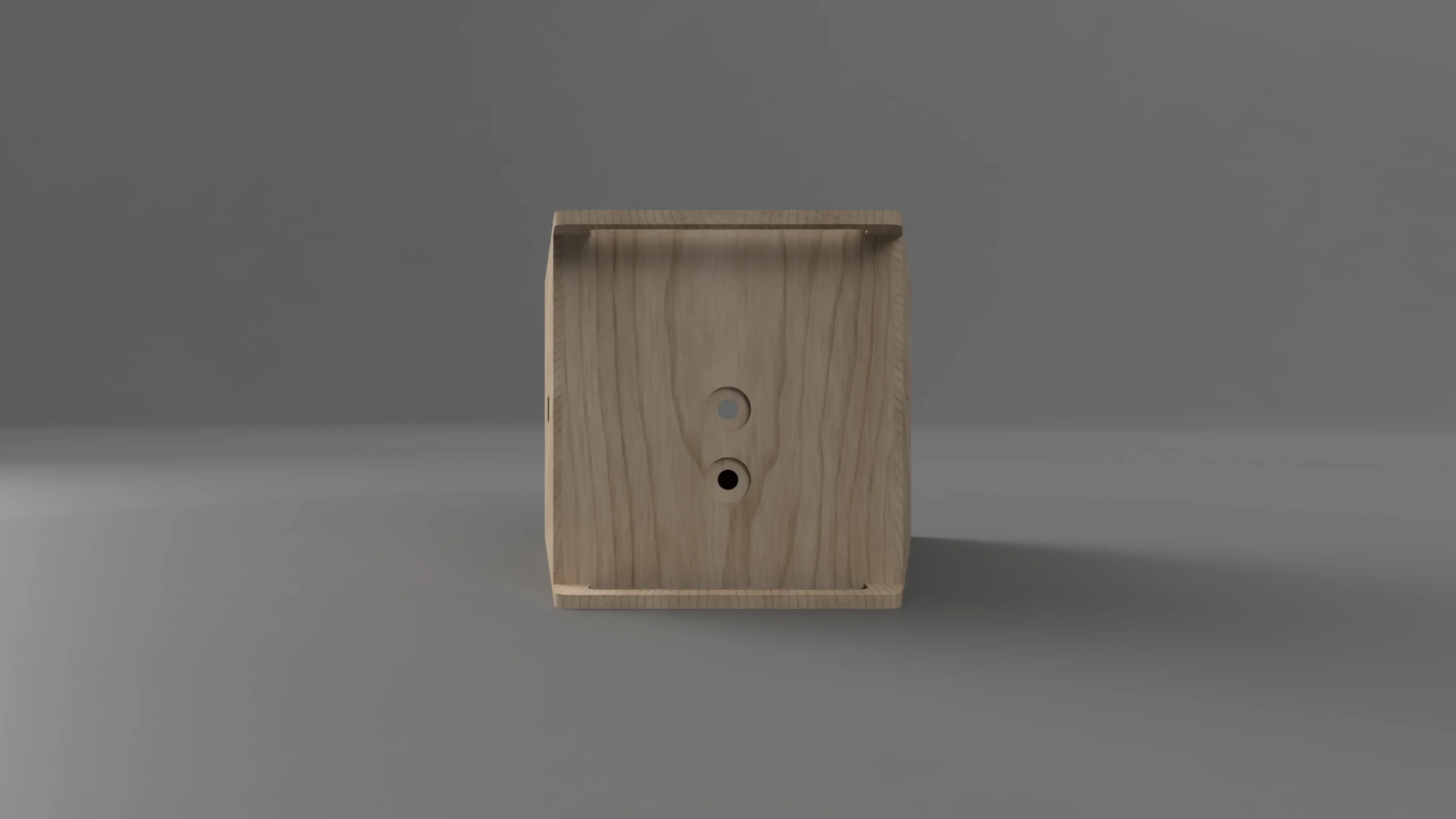

• Recessed round NL4 jack for Part #092-054
• Holes drilled to attach feet for 1/4" 20 T-Nuts.
• Recessed feet on bottom. Part #RH-1606-8-A
• Holes for baffle drilled for M5 threaded inserts. Part #a16103100ux0956

Design Specs

  • Dimensions: 425mm x (600mm front / 383mm rear) x 1000mm
  • Shape: Trapezoid
  • Weight: 38 lbs

Operating Specs

• Nominal Coverage Horizontal: 60°
• Nominal Coverage Vertical: 40°
• Low-frequency Cutoff: -3dB at 400Hz
• Frequency Range: 400Hz-17,000Hz
